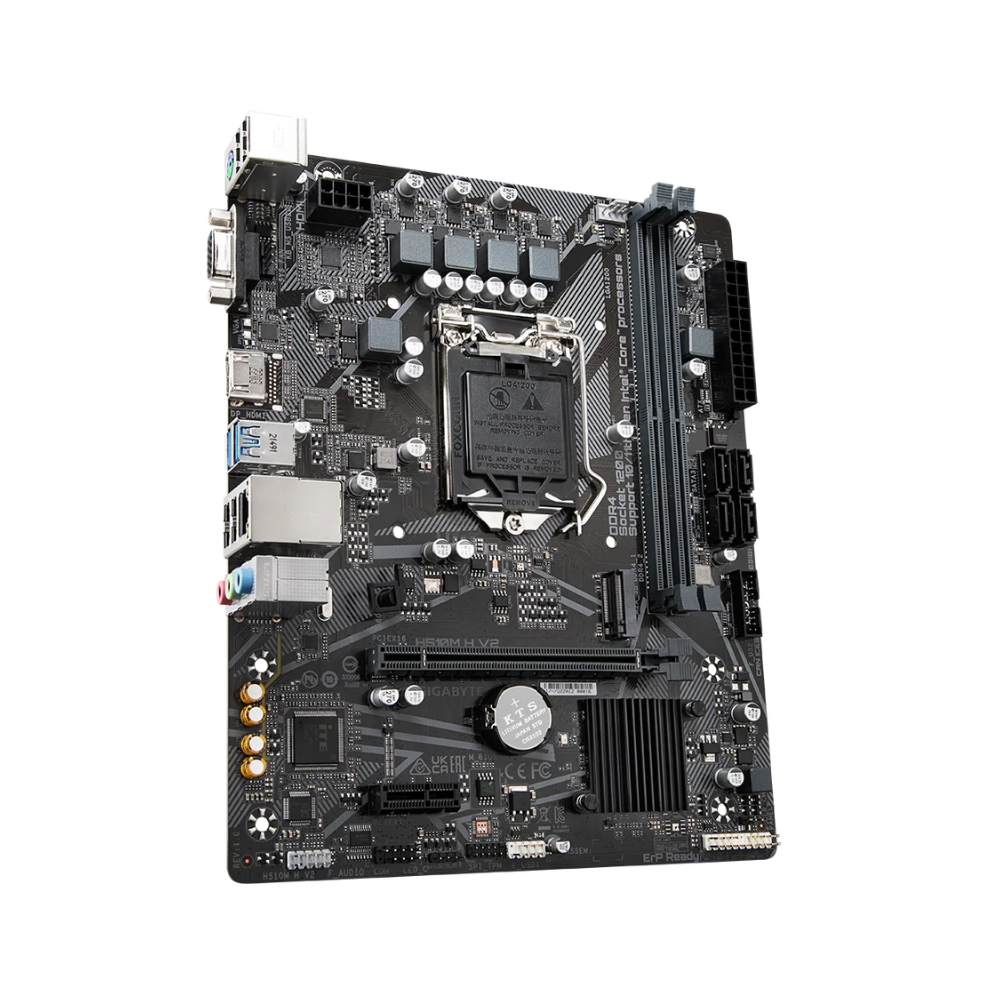

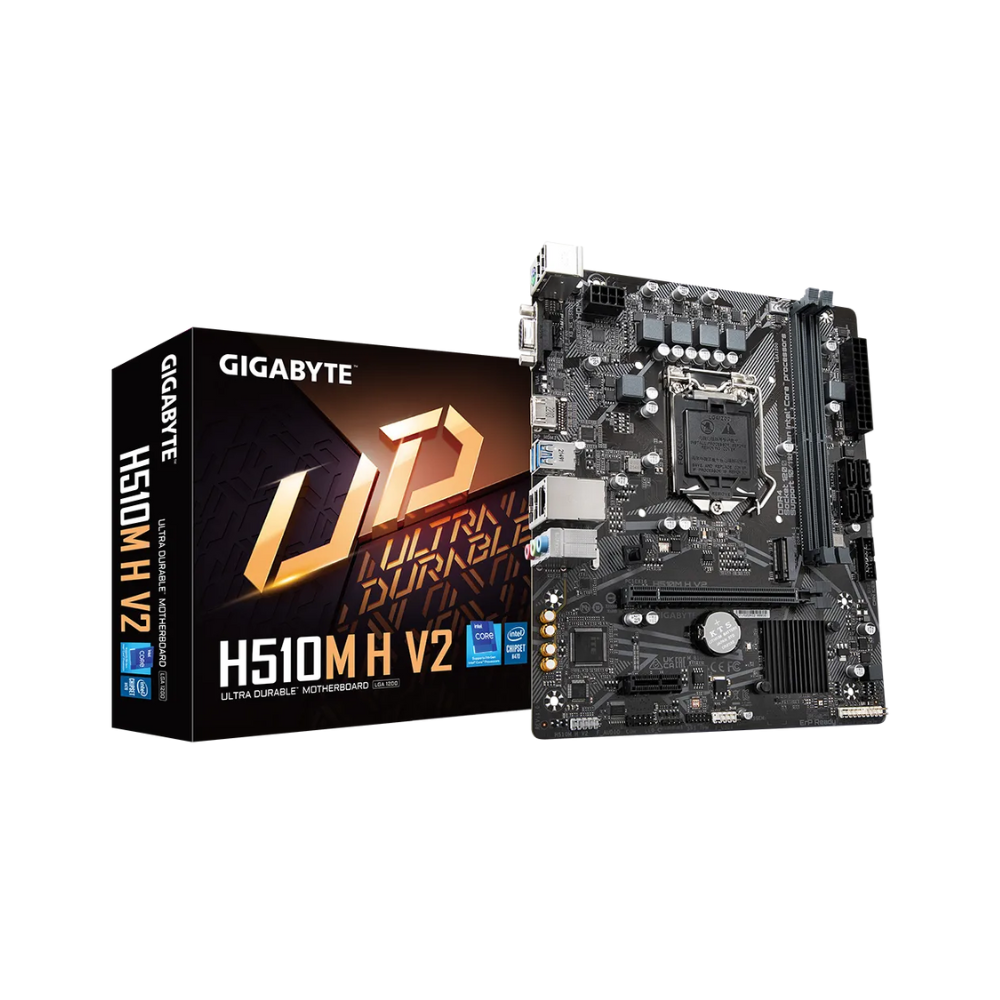

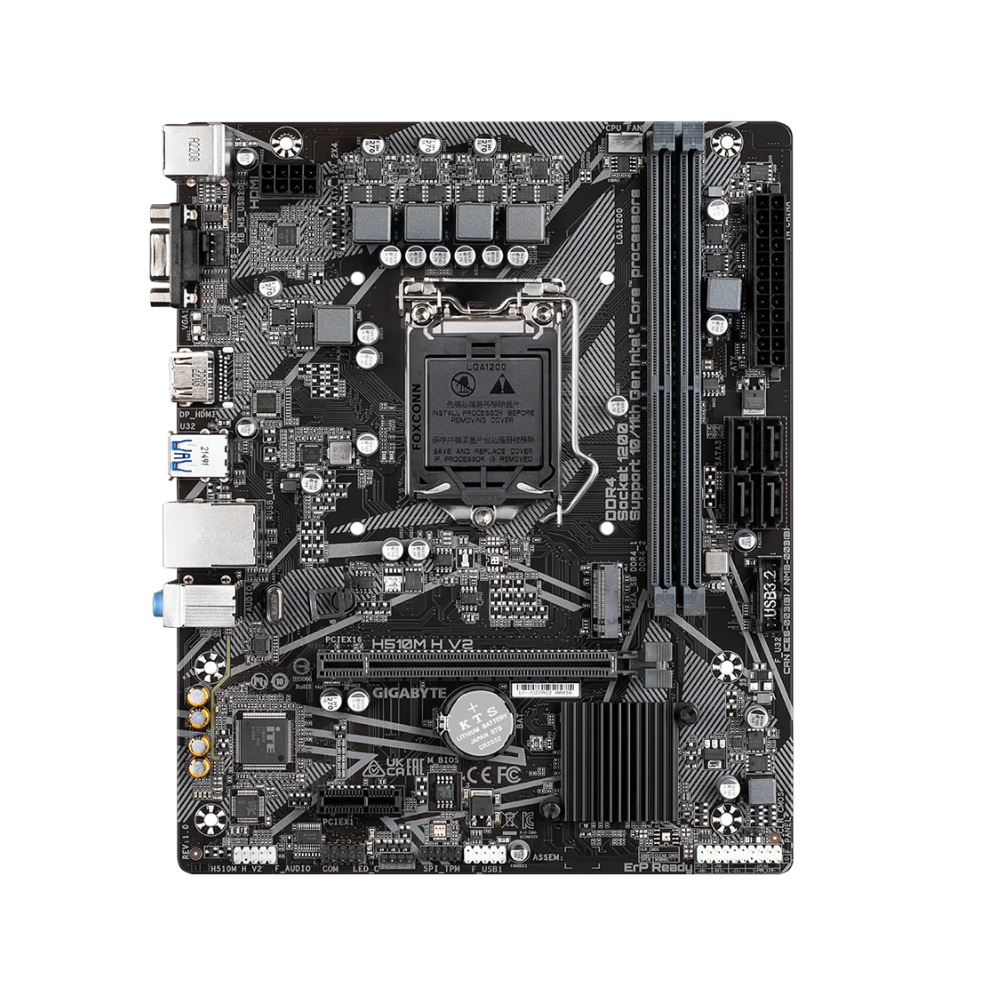

Name: GIGABYTE H510M H V2 LGA 1200
Brand: GIGABYTE
SKU: FW 30502
Price: 120000 IQD
Availability: InStock

GIGABYTE H510M H V2 LGA 1200

(0 Reviews)

Brand: GIGABYTE

IQD 120,000

In Stock

CPU	11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors, 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors; L3 cache varies with CPU
Chipset	Intel® H470 Express Chipset
Memory	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port (4096×2160@30 Hz, HDMI 1.4, HDCP 2.3), 1 x D-Sub port (1920×1200@60 Hz, only available with the 10th Generation processors)
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, PCIe 3.0 x16, 1 x PCI Express x1 slot, PCIe 3.0 x1; Chipset: 1 x PCI Express x16 slot, PCIe 3.0 x16, 1 x PCI Express x1 slot, PCIe 3.0 x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280, SATA and PCIe 3.0 x4/x2), 4 x SATA 6Gb/s connectors; RAID 0 and RAID 1 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 back panel, 2 internal), 6 x USB 2.0/1.1 ports (4 back panel, 2 internal)
Internal I/O Connectors	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module header, 1 x serial port header, 1 x Clear CMOS jumper

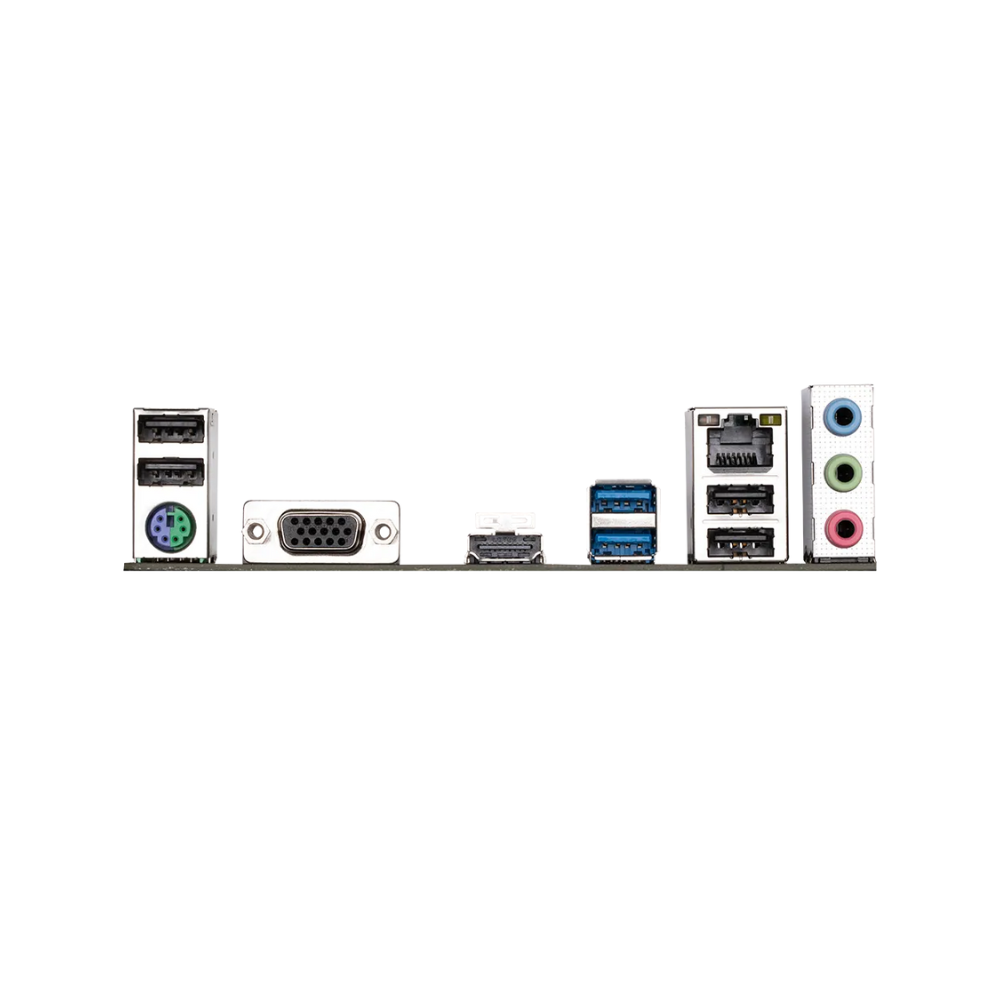

Back Panel Connectors	1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed contro
BIOS	1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Product Page

GIGABYTE H510M H V2 LGA 1200
