Name: MSI PRO B760M-P D5, Motherboard
Brand: MSI
SKU: GL 107963
Price: 165000 IQD
Availability: InStock

MSI PRO B760M-P D5, Motherboard

(0 Reviews)

Brand: MSI

IQD 165,000

In Stock

Chipset	Intel B760
CPU Support	Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors; Socket LGA 1700
Memory	4 x DDR5 slots, up to 256GB; Supported Frequencies: DDR5 6800+(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(JEDEC), 5400(JEDEC), 5200(JEDEC), 5000(JEDEC), 4800(JEDEC); Max. Overclocking Frequencies: 1DPC 1R up to 6800+ MHz, 1DPC 2R up to 6400+ MHz, 2DPC 1R up to 6000+ MHz, 2DPC 2R up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Dual-Controller Dual-Channel mode; Non-ECC, un-buffered memory
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Storage	2 x M.2 Slots: M.2_1 (CPU) PCIe 4.0 x4, 2280/2260/2242 devices, M.2_2 (Chipset) PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices; 4 x SATA 6G ports (SATA5 unavailable if an M.2 SATA SSD is installed in the M2_2 slot)
LAN	Realtek® RTL8111H Gigabit LAN
Onboard Graphics	1 x HDMI™ 1.4: Up to 4K 30Hz; 1 x DisplayPort 1.4: Up to 4K 60Hz; 1 x VGA: Resolutions up to 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz (graphics specifications depend on the CPU)
Expansion Slots	1 x PCI-E x16 slot (PCI_E1, Gen PCIe 4.0, from CPU); 2 x PCI-E x1 slots (PCI_E2, PCI_E3, Gen PCIe 4.0, from Chipset)
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
USB Ports	Rear: 4 x USB 2.0, 1 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C; Front: 4 x USB 2.0, 2 x USB 5Gbps Type-A
Internal I/O Connectors	1 x ATX Power Connector; 1 x CPU Power Connector; 1 x CPU Fan; 2 x System Fan; 2 x Front Panel (JFP); 1 x Chassis Intrusion (JCI); 1 x Front Audio (JAUD); 1 x Printer Port (JLPT); 1 x Com Port (JCOM); 1 x RGB LED Connector (JRGB); 1 x TPM Pin Header (Support TPM 2.0); 4 x USB 2.0 Ports; 2 x USB 5Gbps Type-A Ports
LED Feature	4 x EZ Debug LED

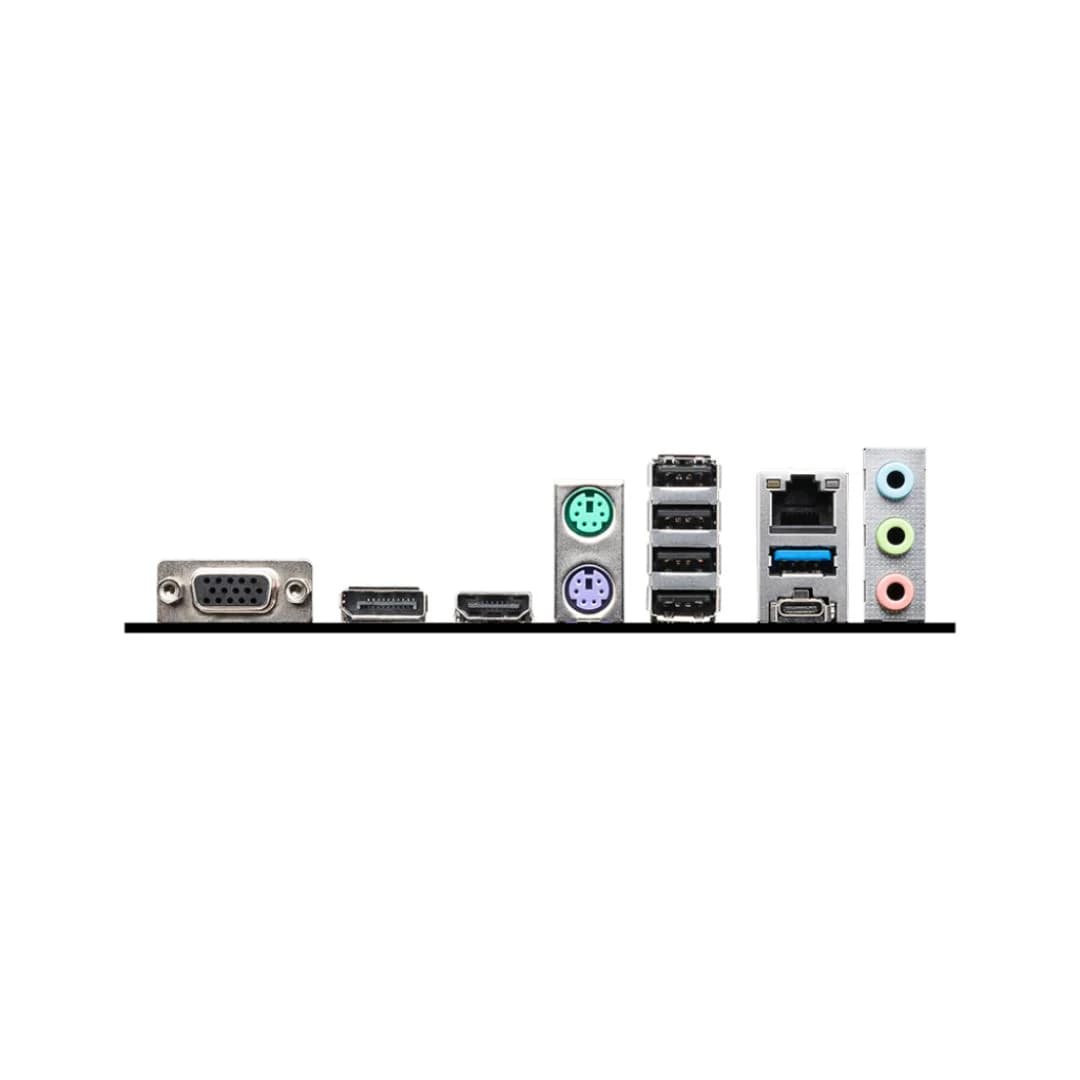

Back Panel Ports	VGA; DisplayPort; HDMI™; Keyboard / Mouse; USB 2.0; LAN port; Audio Connectors; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C)
Operating System	Supports Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	mATX (243.84mm x 243.84mm)
