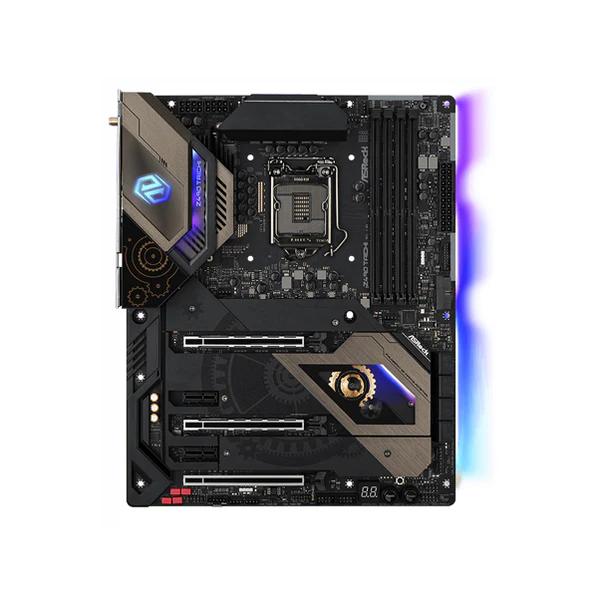

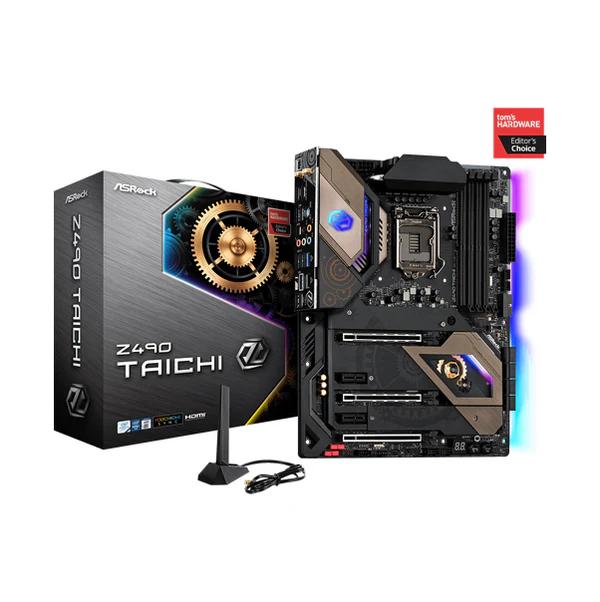

ASRock Z490 Taichi (WI-FI) Motherboard

ASRock Z490 Taichi (WI-FI) — Key Specifications

CPU Support

• Intel 10th & 11th Gen Core processors (LGA 1200) ASRock

Chipset

• Intel Z490 ASRock

Memory

• 4 × DDR4 DIMM slots
• Supports DDR4 up to 4666 MHz+ (OC) ASRock

Storage

• 8 × SATA3 ports
• 3 × M.2 slots (PCIe & SATA compatible) ASRock

Expansion Slots

• 3 × PCIe 3.0 x16 slots
• 2 × PCIe 3.0 x1 slots ASRock

Networking

• Intel Wi-Fi 6 (802.11ax) with Bluetooth 5.1
• Dragon 2.5 Gb LAN + Intel Gigabit LAN ASRock

USB

• 1 × USB 3.2 Gen2x2 Type-C (20 Gb/s)
• 3 × USB 3.2 Gen2 (10 Gb/s)
• 9 × USB 3.2 Gen1 ports ASRock

Audio

• 7.1-channel HD Audio (Realtek ALC1220) with Nahimic ASRock

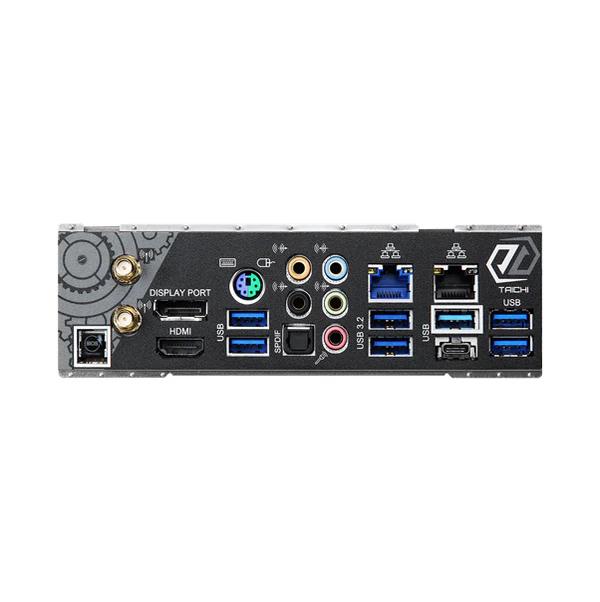

Graphics Outputs

• HDMI + DisplayPort ASRock

Form Factor

• ATX ASRock

Extras

• ASRock Polychrome RGB lighting support ASRock
