ASUS TUF GAMING B850 PLUS WIFI , Motherboard

Motherboard Specification:

• Processor Support :- AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

• Chipset :- AMD B850

• Memory Support :- 4 x DIMM, Max. 256GB, DDR5 8000+ (OC), ECC/Non-ECC, Dual Channel, EXPO™ & AEMP supported

• Graphics Ports :- 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz)

• Expansion Slots :- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1

• Storage :- 3 x M.2 slots, 4 x SATA 6Gb/s

• Ethernet :- Realtek 2.5Gb Ethernet

• Wireless & Bluetooth :- Wi-Fi 7, Bluetooth v5.4

• USB :- 10 rear ports, 7 front ports (USB 20Gbps Type-C, USB 10Gbps, 5Gbps, USB 2.0)

• Audio :- Realtek ALC1220P 7.1 Surround Sound

• Internal I/O Connectors :- 3 x M.2 slots, 4 x SATA, Fan headers, USB, RGB Gen 2, Thunderbolt™ header

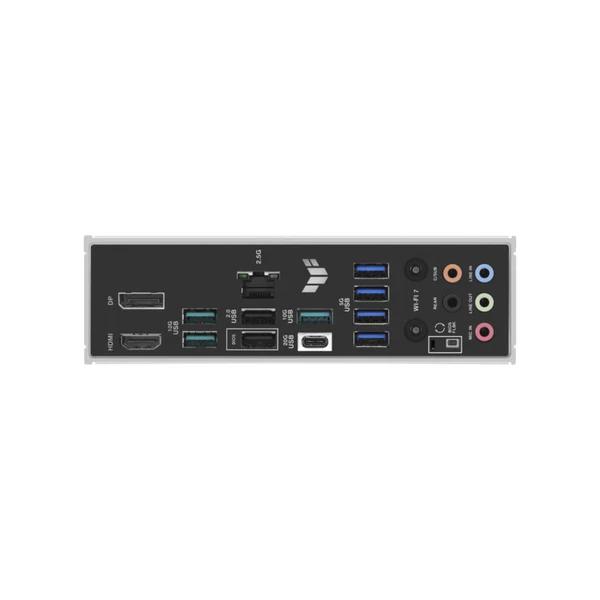

• Back Panel I/O Ports :- 1 x USB 20Gbps Type-C, 6 x USB-A (10Gbps & 5Gbps), 2 x USB 2.0, DisplayPort, HDMI, Audio jacks, LAN, Wi-Fi module, BIOS FlashBack™, Clear CMOS

• Form Factor :- ATX (30.5 cm x 24.4 cm)
