ASUS TUF GAMING B860-PLUS WIFI , Motherboard

TUF GAMING B860-PLUS WIFI - Motherboard Specification

• Socket: Intel LGA 1851
• Chipset: Intel B860
• Form Factor: ATX
• RAM: 4× DDR5, up to 256GB, 8666+ MT/s (OC), Dual Channel
• Storage:
•

• 3× M.2 (1× PCIe 5.0, 2× PCIe 4.0)
• 4× SATA 6Gb/s
• Expansion Slots:
•

• 1× PCIe 5.0 x16
• 1× PCIe 4.0 x16 (x4 mode)
• 1× PCIe 4.0 x1
• Graphics Ports: HDMI 2.1, DisplayPort 1.4, USB-C (DP Alt)
• LAN: Realtek 2.5Gb Ethernet
• Wi-Fi & BT: Wi-Fi 7 (2x2), Bluetooth 5.4
• USB Ports:
•

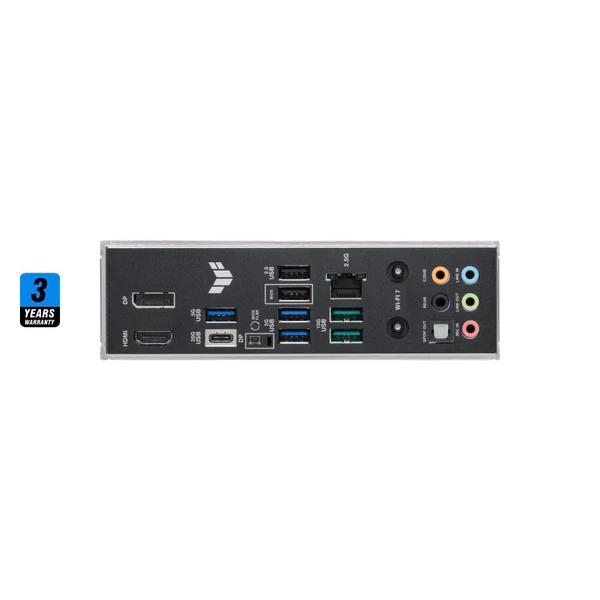

• Rear: 1× USB-C 20Gbps, 2× USB-A 10Gbps, 3× USB-A 5Gbps, 2× USB 2.0
• Front: 1× USB-C 10Gbps, 2× USB 5Gbps, 2× USB 2.0
• Audio: Realtek 7.1 HD, S/PDIF Out
• Power: 24-pin ATX, 2× 8-pin CPU
• Cooling: 6× Fan headers (CPU, AIO, Chassis)
• RGB: Aura Sync, 3× ARGB Gen 2
• Features: Q-Latch, Q-LED, M.2 heatsinks, BIOS FlashBack

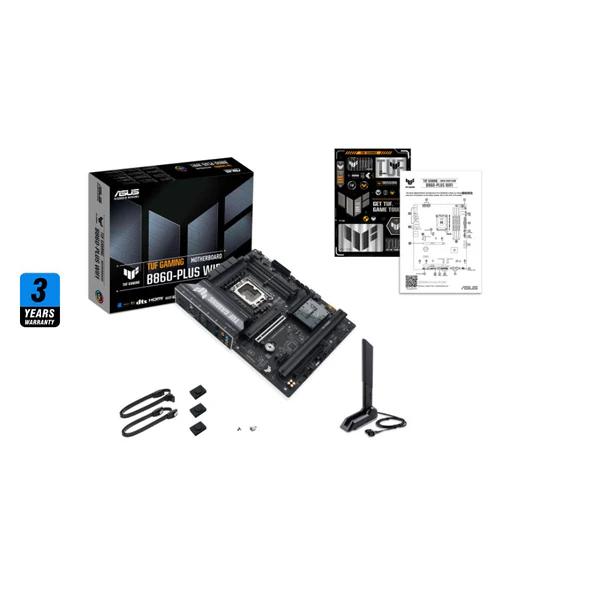

• Accessories: Wi-Fi antenna, SATA cables, M.2 kit, sticker
• OS Support: Windows 11 (22H2+)
