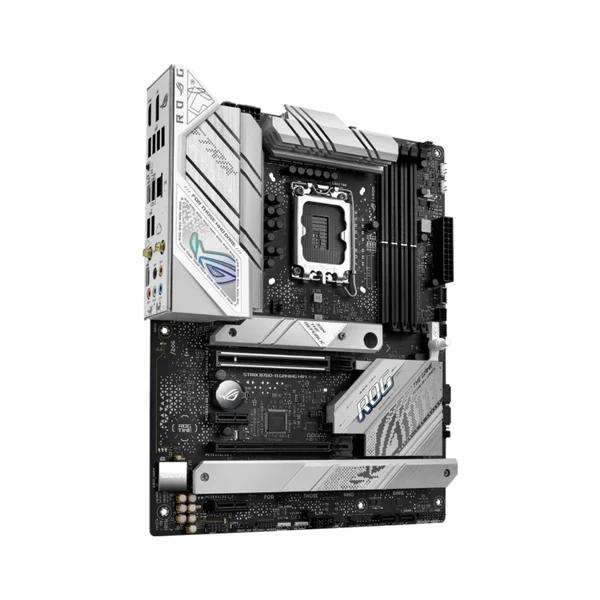

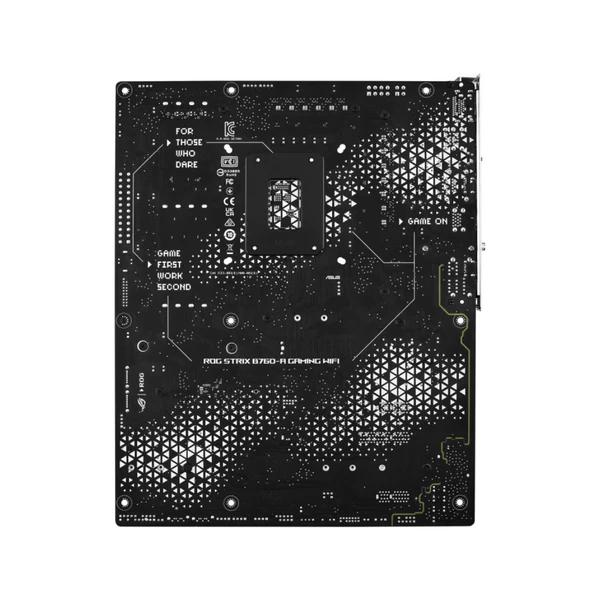

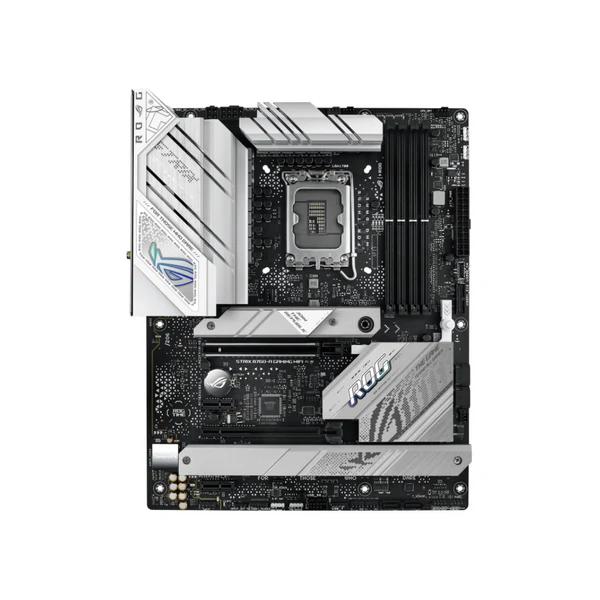

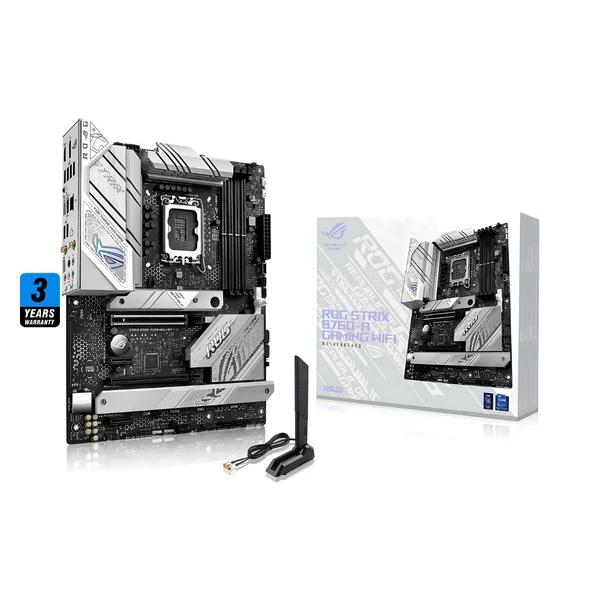

ASUS ROG STRIX B760-A GAMING WIFI

• Motherboard Specification

 • Model: ASUS ROG STRIX B760-A GAMING WIFI

 • Chipset: Intel B760

 • CPU Support:

– Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron (Socket LGA 1700)

 • Form Factor: ATX

 • Memory Support:

– 4 × DDR5 DIMM slots

– Up to 192GB total capacity

– Up to 7800+ MT/s (OC)

– Dual-channel architecture

– Supports Intel XMP and AEMP II profiles

 • Expansion Slots:

– 1 × PCIe 5.0 x16 (CPU)

– 1 × PCIe 3.0 x16 (x4 mode)

– 2 × PCIe 3.0 x1

 • Storage:

– 3 × M.2 PCIe 4.0 x4 (NVMe only)

– 4 × SATA 6Gb/s ports

 • Graphics Output:

– 1 × HDMI 2.1

– 1 × DisplayPort 1.4

 • Audio:

– ROG SupremeFX 7.1 Surround Sound

– ALC4080 codec + Savitech amplifier

 • Networking:

– Intel Wi-Fi 6E (802.11ax)

– Bluetooth 5.3

– Intel 2.5Gb Ethernet with LANGuard

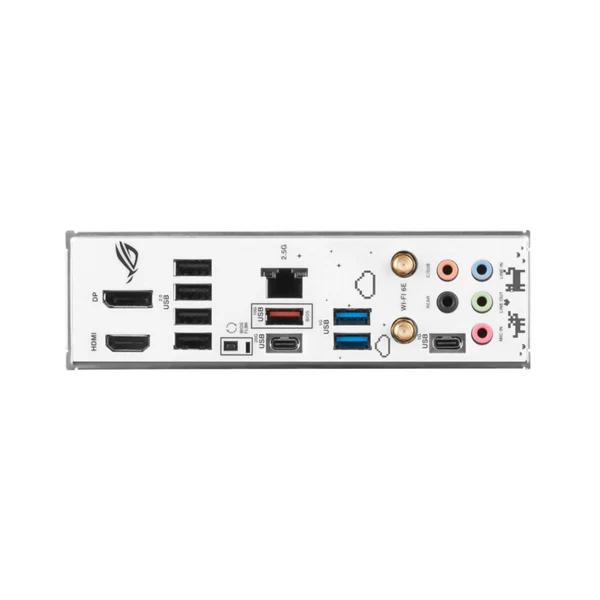

 • USB Ports:

– Rear I/O:

• 1 × USB 3.2 Gen 2x2 Type-C

• 3 × USB 3.2 Gen 2 Type-A

• 4 × USB 2.0

– Internal Headers:

• 1 × USB 3.2 Gen 2 Type-C

• 2 × USB 3.2 Gen 1

• 2 × USB 2.0

 • Internal Connectors:

– 1 × 24-pin ATX

– 1 × 8-pin + 1 × 4-pin CPU power

– 6 × fan headers

– 2 × ARGB headers

– 2 × RGB headers

– TPM, Thunderbolt header, front panel audio

 • DIY Features:

– PCIe Q-Release

– M.2 Q-Latch

– BIOS FlashBack™

– Q-LED diagnostic indicators

 • BIOS:

– UEFI AMI BIOS with MemTest86

– 256Mb Flash ROM

 • Software:

– Armoury Crate, AI Networking, Two-Way AI Noise Cancelation

 • Dimensions: 305 × 244 mm

 • Color: White and silver cyber-themed design
