ASUS ROG STRIX Z490-G GAMING Motherboard

Motherboard Specification

• Model: ASUS ROG STRIX Z490-G GAMING (WiFi 6)

• Form Factor: Micro ATX

• Socket: Intel LGA 1200 – supports 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

• Chipset: Intel Z490

• Memory Support:

– 4 × DDR4 DIMM slots (up to 128GB)

– Speeds: DDR4 2133 to 4600 MHz (OC)

– Dual-channel architecture

– Supports Intel XMP profiles

• Expansion Slots:

– 1 × PCIe 3.0 x16 (CPU)

– 1 × PCIe 3.0 x16 (PCH, x4 mode)

– 1 × PCIe 3.0 x1

• Storage Interface:

– 2 × M.2 Socket 3

• 1 × PCIe 3.0 x4 (Type 2242–22110)

• 1 × SATA & PCIe 3.0 x4 (Type 2242–2280)

– 6 × SATA 6Gb/s ports

• Networking:

– Intel® I225-V 2.5Gb Ethernet with LANGuard

– Intel® Wi-Fi 6 (802.11ax)

– Bluetooth 5.1

• Audio:

– SupremeFX S1220A codec

– DTS Sound Unbound, Sonic Studio III

• USB Ports:

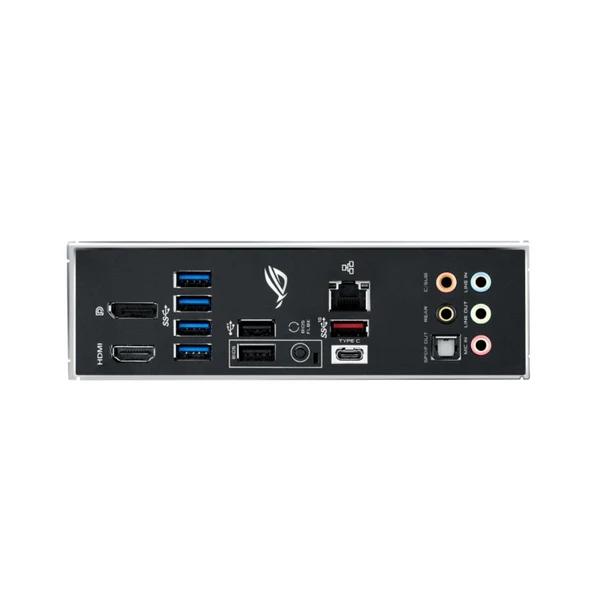

– Rear I/O:

• 2 × USB 3.2 Gen 2 (Type-A + Type-C)

• 4 × USB 3.2 Gen 1

• 2 × USB 2.0

– Internal Headers:

• 1 × USB 3.2 Gen 2 front panel

• 1 × USB 3.2 Gen 1

• 2 × USB 2.0

• Display Outputs:

– 1 × HDMI 1.4

– 1 × DisplayPort 1.4

• RGB & Customization:

– Aura Sync RGB lighting

– 2 × 4-pin RGB headers

– 2 × 3-pin Addressable Gen 2 headers

• Power Design:

– 12+2 power stages

– ProCool II power connector

– Digi+ VRM

• Cooling Features:

– VRM heatsink

– M.2 heatsinks

– Hybrid fan headers

– Fan Xpert 4 utility
