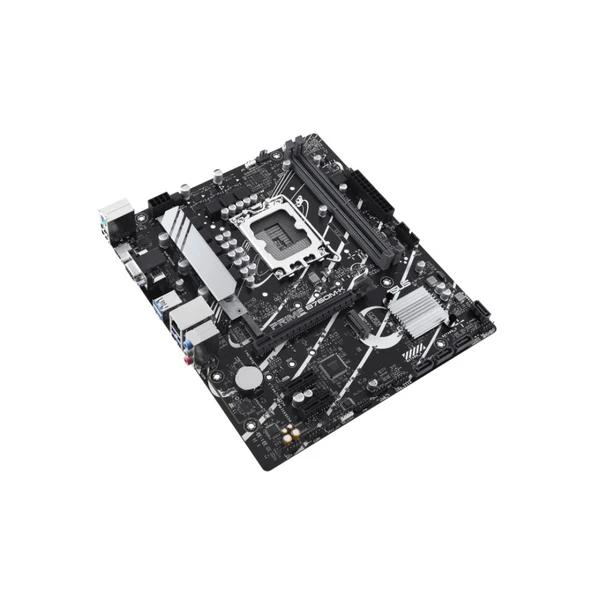

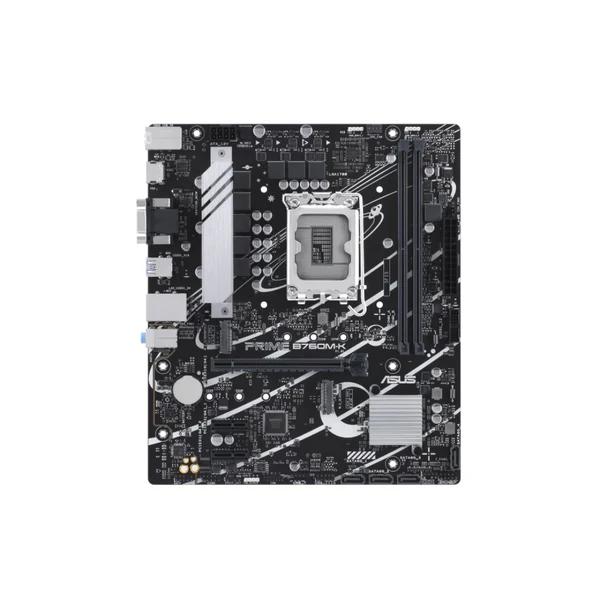

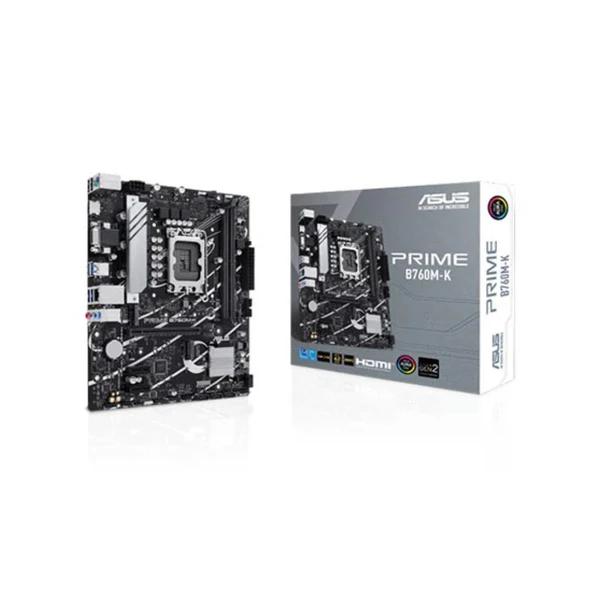

ASUS PRIME B760M-K D5, Motherboard

Motherboard Specification

• Processor Support: Intel® LGA1700 for 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors

• Chipset: Intel® B760

• Memory Support: 2 x DDR5 DIMMs up to 96GB, up to 8000MHz (OC), Dual Channel, XMP support

• Graphics Ports: 1 x HDMI™ 2.1 (4K@60Hz), 1 x VGA

• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1

• Storage: 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s

• Ethernet: Realtek 2.5Gb LAN

• Wireless & Bluetooth: Not included (supports optional M.2 Key E module)

• USB:

 – Rear: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)

 – Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (3 ports)

• Audio: Realtek 7.1 Surround HD Audio, 24-bit/192kHz playback, premium audio capacitors

• Internal I/O Connectors:

 – 2 x M.2, 4 x SATA

 – 1 x 24-pin ATX, 1 x 8-pin EPS

 – 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

 – 2 x ARGB Gen 2 headers, 1 x Aura RGB header

 – Fan headers, Clear CMOS, TPM, S/PDIF, COM, AAFP, Speaker

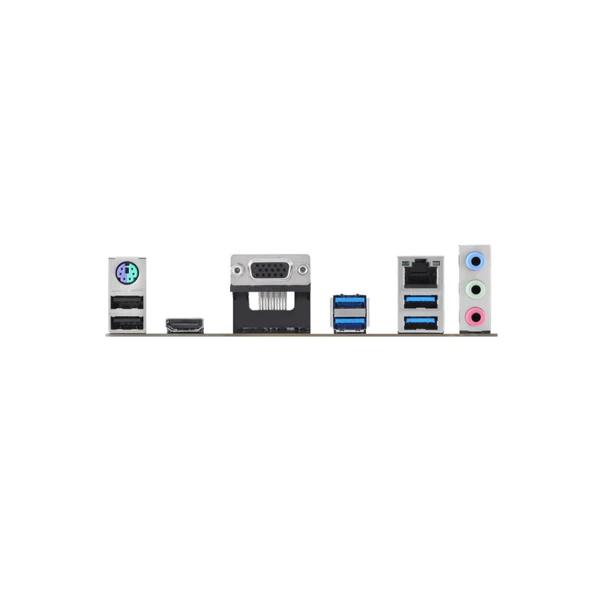

• Back Panel I/O Ports:

 – 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)

 – 1 x HDMI, 1 x VGA

 – 1 x Realtek 2.5Gb Ethernet

 – 3 x Audio jacks

 – 1 x PS/2 keyboard/mouse combo

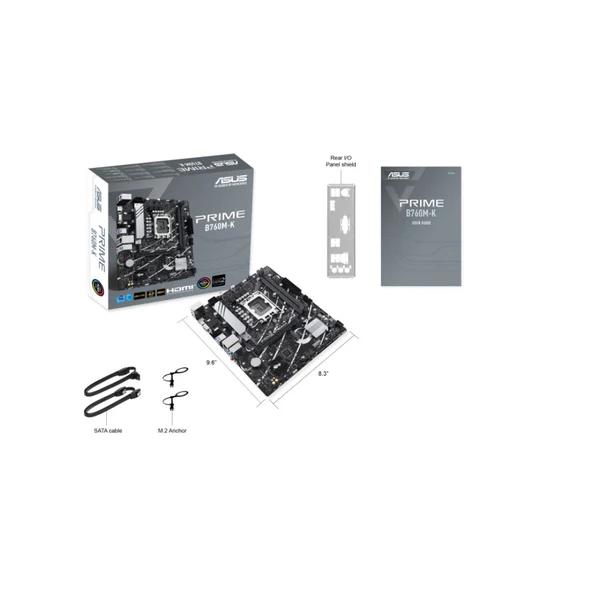

• Form Factor: microATX (24.4 cm x 21.1 cm)
