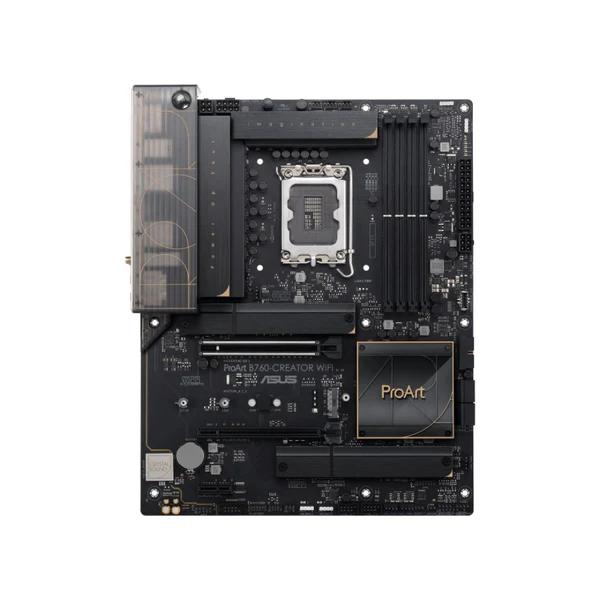

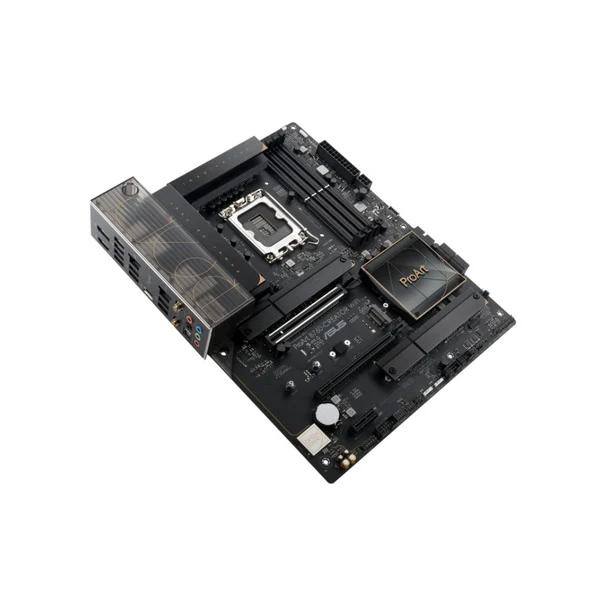

ASUS ProArt B760 CREATOR WIFI , Motherboard

Motherboard Specification

• Chipset: Intel B760

• Socket: LGA1700 – Supports 12th & 13th & 14thGen Intel Core processors

• Form Factor: ATX

• Memory Support: 4 x DDR5 DIMM slots, up to 192GB, up to 7200+ MT/s (OC), Dual Channel, Intel XMP 3.0

• Graphics Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4

• Audio: Realtek ALC897 – 7.1 Channel HD Audio, Optical S/PDIF out

• Expansion Slots:

– 1 x PCIe 5.0 x16

– 1 x PCIe 4.0 x4

– 1 x PCIe 3.0 x1

• Storage:

– 3 x M.2 (PCIe 4.0 x4)

– 4 x SATA III

– RAID 0/1/5/10 support

• Networking:

– Intel 2.5GbE LAN + 1GbE LAN

– Intel Wi-Fi 6

– Bluetooth 5.2

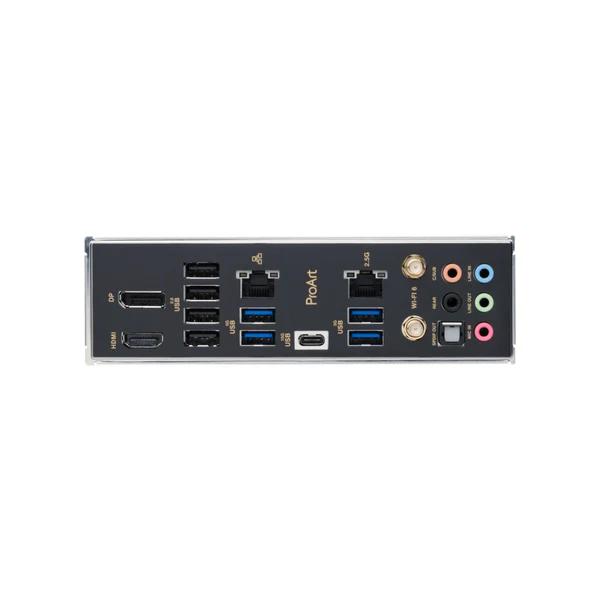

• USB Ports:

– Rear: USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C

– Internal: USB 2.0, USB 5Gbps, USB 20Gbps Type-C header

• Cooling & Features:

– 12+1 Power Stages (50A)

– Large VRM & chipset heatsinks

– M.2 heatsinks, 6 x PWM fan headers, AIO pump header

– Thunderbolt 4 header, Aura Sync RGB headers

– ProArt Creator Hub software

• OS Support: Windows 11 / Windows 10 64-bit

• Warranty: 3-Year Manufacturer Warranty
