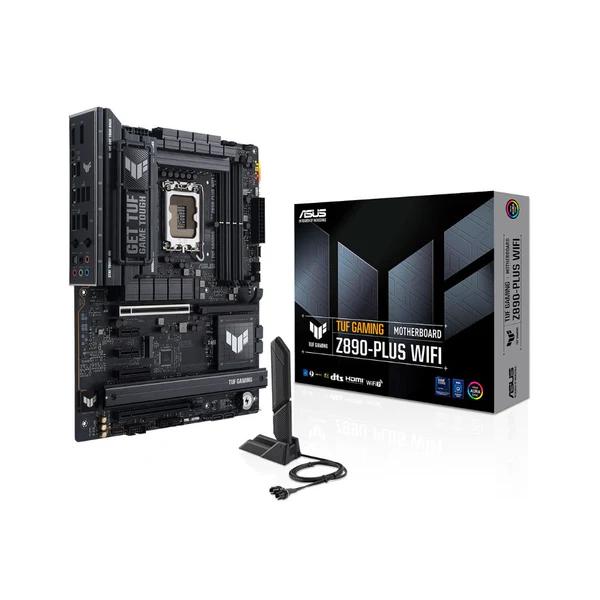

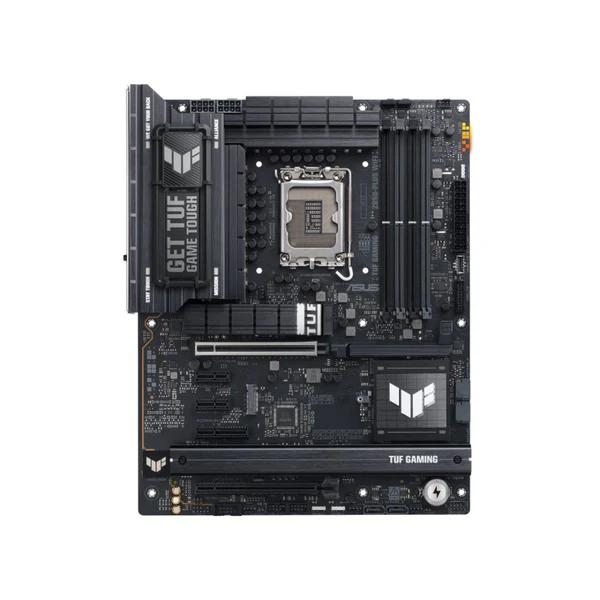

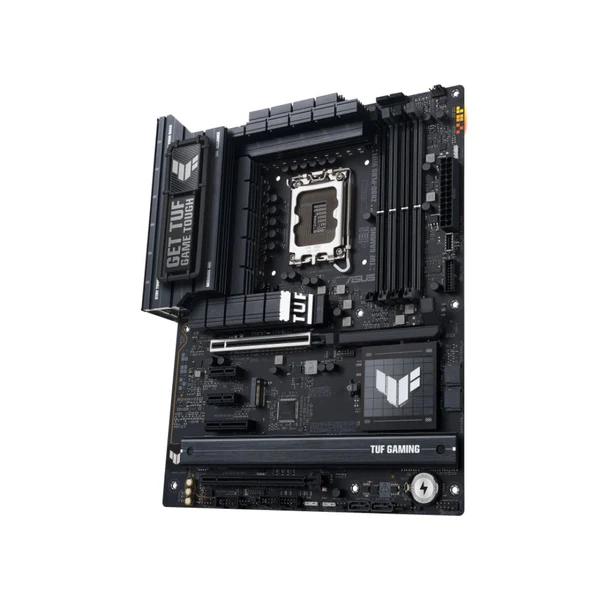

ASUS TUF GAMING Z890-PLUS WIFI

Motherboard Specification

• Model: ASUS TUF GAMING Z890-PLUS WIFI

• Socket: Intel LGA 1851 – supports Intel Core™ Ultra Series 2 processors

• Chipset: Intel Z890

• Form Factor: ATX

• Power Design:

– 16+1+2+1 DrMOS power stages (80A each)

– ProCool connectors, 8-layer PCB, military-grade components

• Memory Support:

– 4 × DDR5 DIMM slots (up to 256GB)

– Speeds: up to DDR5-9066+ (OC)

– Dual-channel architecture

– Supports Intel XMP & ASUS AEMP III profiles

• Expansion Slots:

– 1 × PCIe 5.0 x16 (SafeSlot with Q-Release)

– 1 × PCIe 4.0 x16 (x4 mode)

– 1 × PCIe 4.0 x4

– 2 × PCIe 4.0 x1

• Storage Interface:

– 4 × M.2 slots:

• 1 × PCIe 5.0 x4 (2280)

• 1 × PCIe 4.0 x4 (2280)

• 1 × PCIe 4.0 x4 (22110)

• 1 × PCIe 4.0 x4 & SATA (2280)

– 4 × SATA 6Gb/s ports

• Networking:

– Intel 2.5Gb Ethernet

– Wi-Fi 7 (802.11be)

– Bluetooth 5.4

• USB Ports:

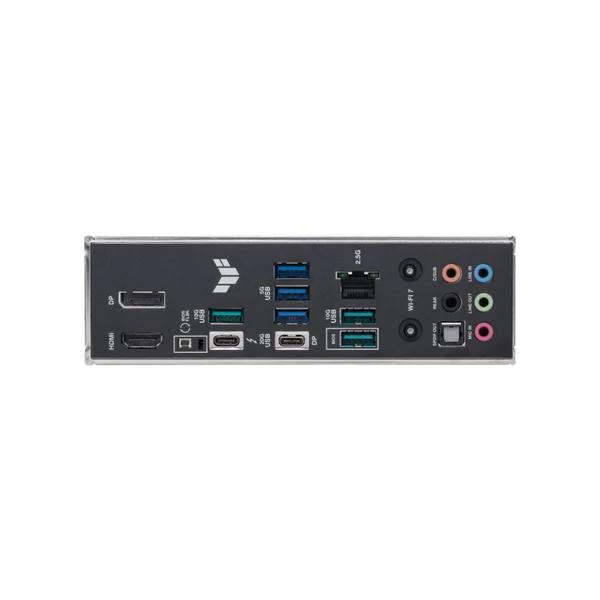

– Rear I/O:

• 2 × Thunderbolt 4 Type-C (40Gbps)

• 6 × USB 3.2 Gen 2 Type-A (10Gbps)

• BIOS Flashback button

– Front I/O:

• USB 3.2 Gen 2x2 Type-C (20Gbps)

• USB 3.2 Gen 1 & USB 2.0 headers

• Display Outputs:

– 1 × HDMI 2.1

– 1 × DisplayPort 2.1

• Audio:

– Realtek ALC1220 codec

– Optical S/PDIF Out

– 5 × Audio jacks

• Cooling Features:

– Enlarged VRM heatsinks

– M.2 heatsinks with Q-Latch, Q-Slide

– Hybrid fan headers

– AI Cooling II

• Exclusive Features:

– AI Advisor, AI Overclocking, AI Networking II

– Q-Antenna, FlexKey button
