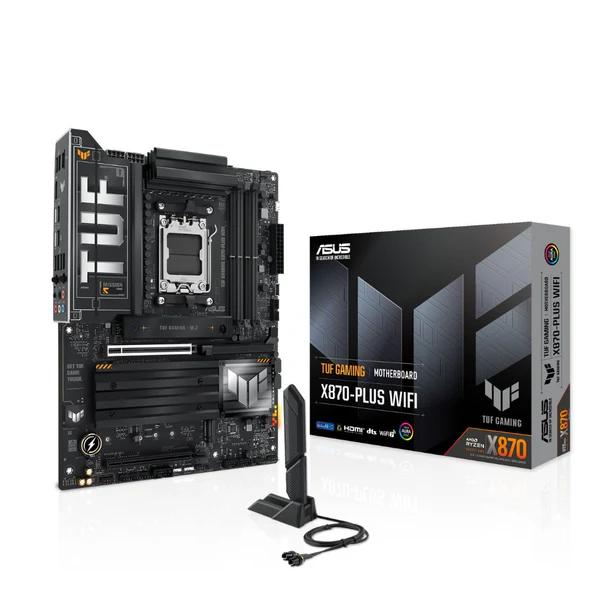

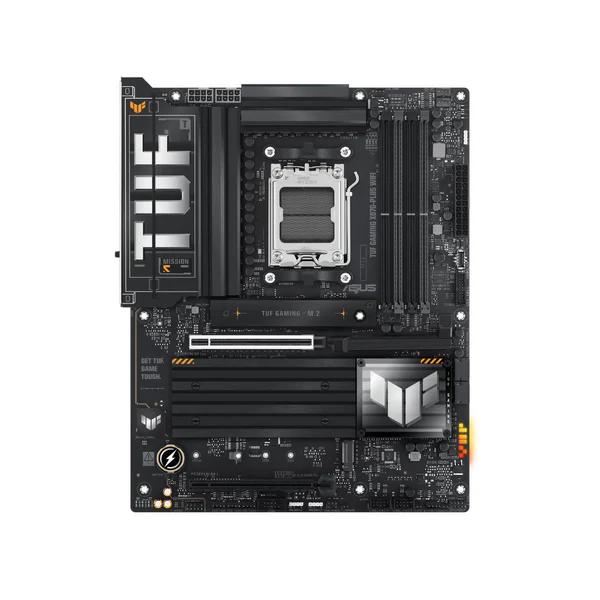

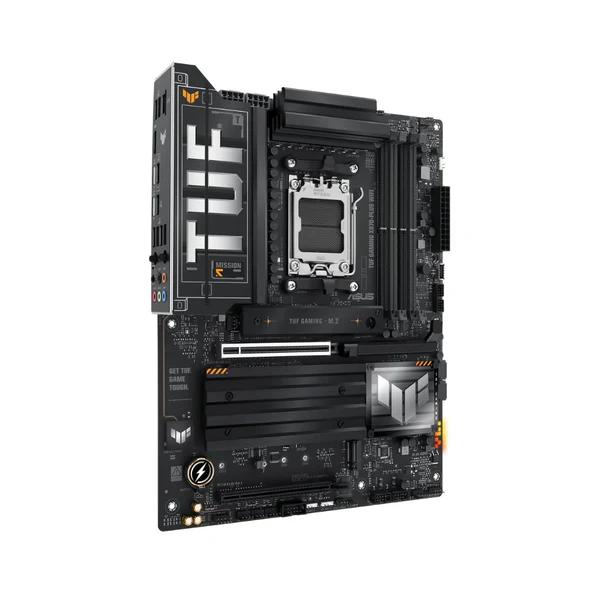

ASUS TUF GAMING X870-PLUS WIFI ,Motherboard

(0 Reviews)

Brand: ASUS

IQD 440,000

In Stock

1

Motherboard Specification

Processor Support: AMD Socket AM5 for Ryzen™ 9000, 8000, & 7000 Series Desktop Processors.
Chipset: AMD X870 Chipset.
Memory Support: 4 x DIMM slots, max 192GB DDR5, supports up to 8000+MT/s (OC).
Graphics Ports: 1 x HDMI™ (4K@60Hz), 2 x USB4® (40Gbps, 4K@60Hz).
Expansion Slots: 1 x PCIe 5.0 x16 (Ryzen™ 9000 & 7000), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (X870).
Storage: 4 x M.2 slots, 2 x SATA 6Gb/s ports, PCIe RAID support.
Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard.
Wireless & Bluetooth: Wi-Fi 7, 2x2 (802.11be), Bluetooth v5.4.
USB: 10 rear USB ports, 7 front USB ports (USB4®, Type-C®).
Audio: Realtek ALC1220P 7.1 Surround Sound, 120dB SNR stereo output, 32-Bit/192 kHz playback.
Internal I/O Connectors: 4 x 4-pin fan headers, USB connectors, power connectors.

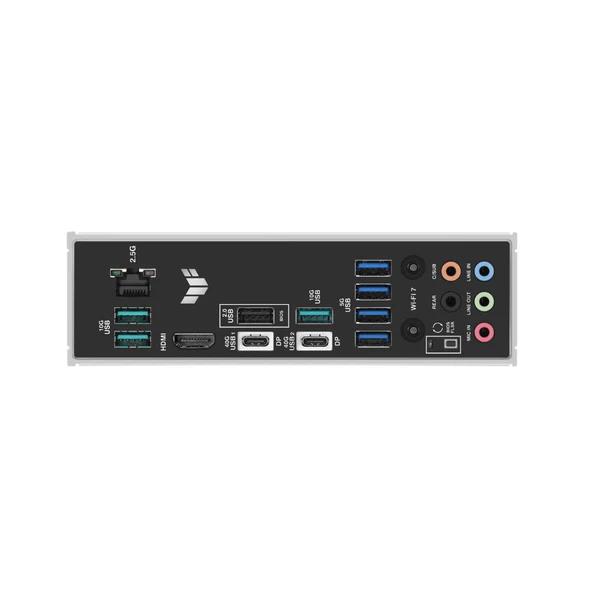

Back Panel I/O Ports: 2 x USB4® (Type-C®), USB 10Gbps/5Gbps, HDMI™, 2.5Gb Ethernet, Wi-Fi, 5 x Audio jacks.
Form Factor: ATX, 12 x 9.6 inches (30.5 cm x 24.4 cm).
