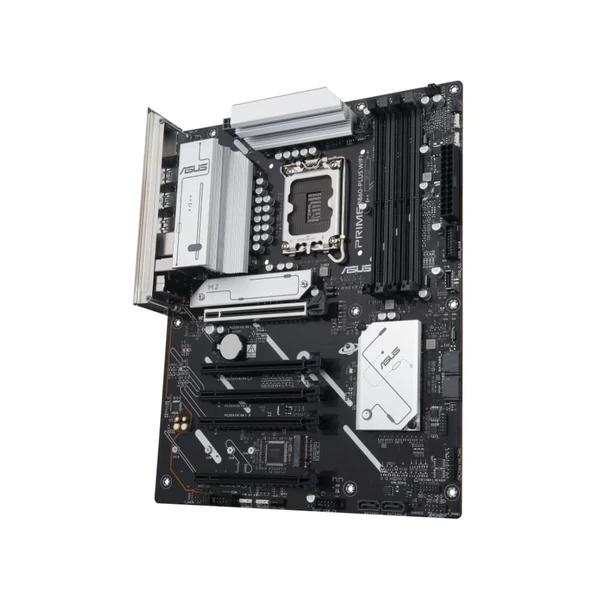

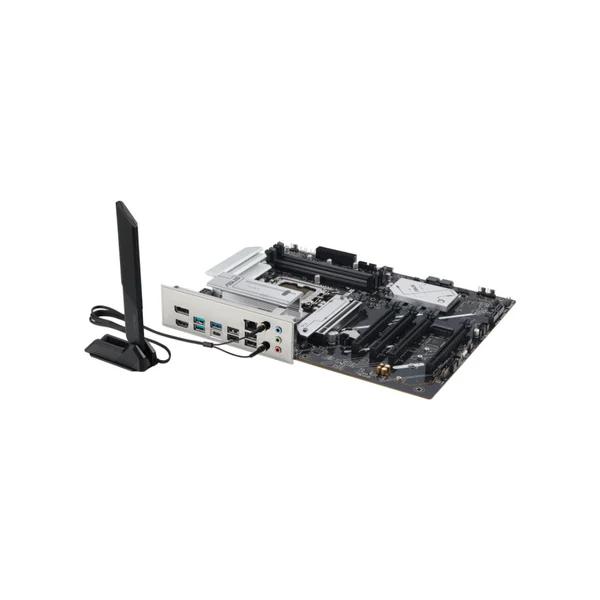

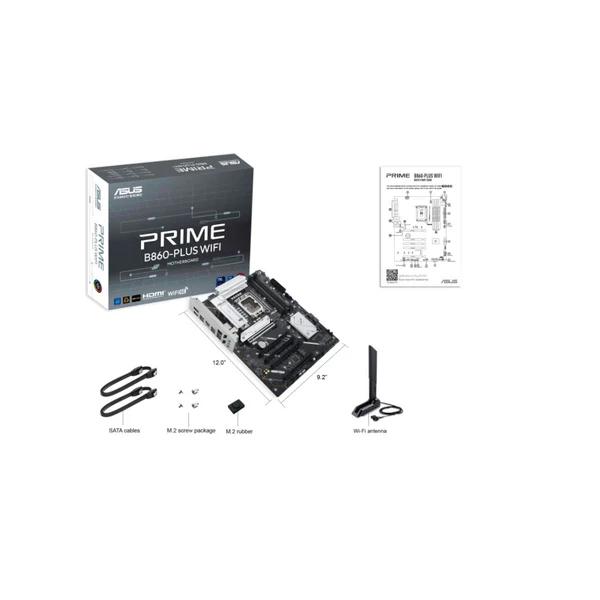

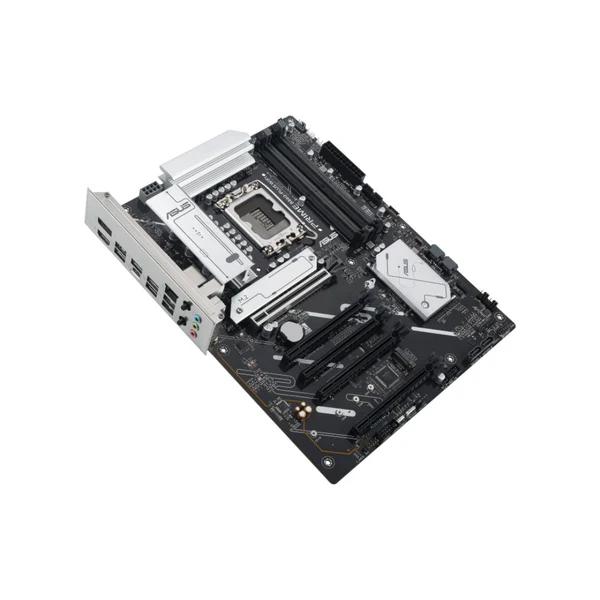

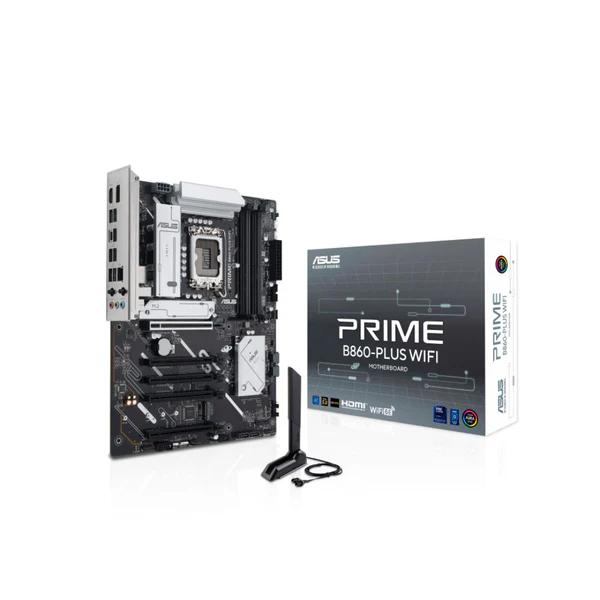

ASUS PRIME B860 PLUS WIFI , Motherboard

ASUS PRIME B860-PLUS WIFI — Motherboard Specifications

CPU Support

• Intel® Core™ Ultra Series 2 processors (LGA 1851 socket) B&H Photo Video

Chipset

• Intel® B860 B&H Photo Video

Form Factor

• ATX (305 × 244 mm) B&H Photo Video

Memory (RAM)

• 4 × DDR5 DIMM slots
• Up to 256 GB total capacity
• Supports high speeds (e.g., up to ~8666+ MT/s OC) ASUS Pressroom
• +1

Storage

• 2 × M.2 slots (PCIe 5.0 ×4 + PCIe 4.0 ×4)
• 4 × SATA 6 Gb/s ports ASUS

Expansion Slots

• 1 × PCIe 5.0 x16 (for graphics)
• 1 × PCIe 4.0 x16 (x4 mode)
• 3 × PCIe 4.0 x1 ASUS Pressroom

Networking

• Wi-Fi 6E (802.11ax) & Bluetooth 5.3
• Realtek 2.5 Gb Ethernet with ASUS LANGuard ASUS

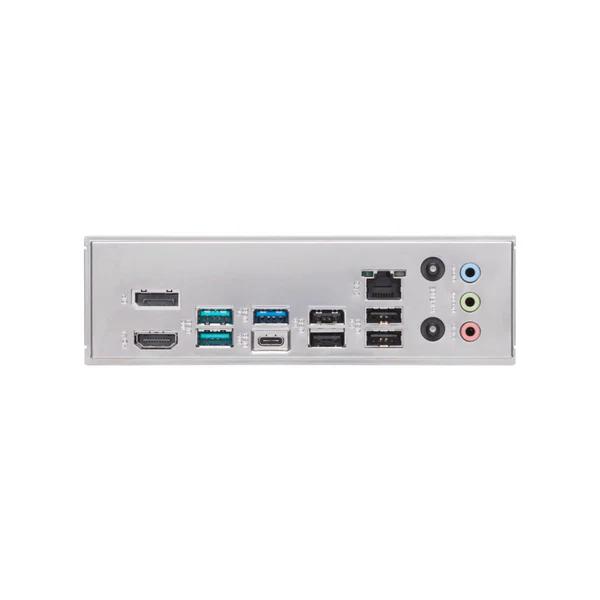

USB Ports

• Rear USB Type-C 20 Gbps
• 2 × USB 10 Gbps
• 1 × USB 5 Gbps
• 4 × USB 2.0
• Front headers for USB-C and more USB ports ASUS

Display Outputs (Integrated Graphics)

• 1 × HDMI 2.1
• 1 × DisplayPort 1.4 B&H Photo Video

Audio

• Realtek 7.1-channel High-Definition Audio codec ASUS

Additional Features

• Support for ASUS Aura Sync RGB lighting
• Multiple fan and cooling headers
• ASUS Q-Design quick install features
