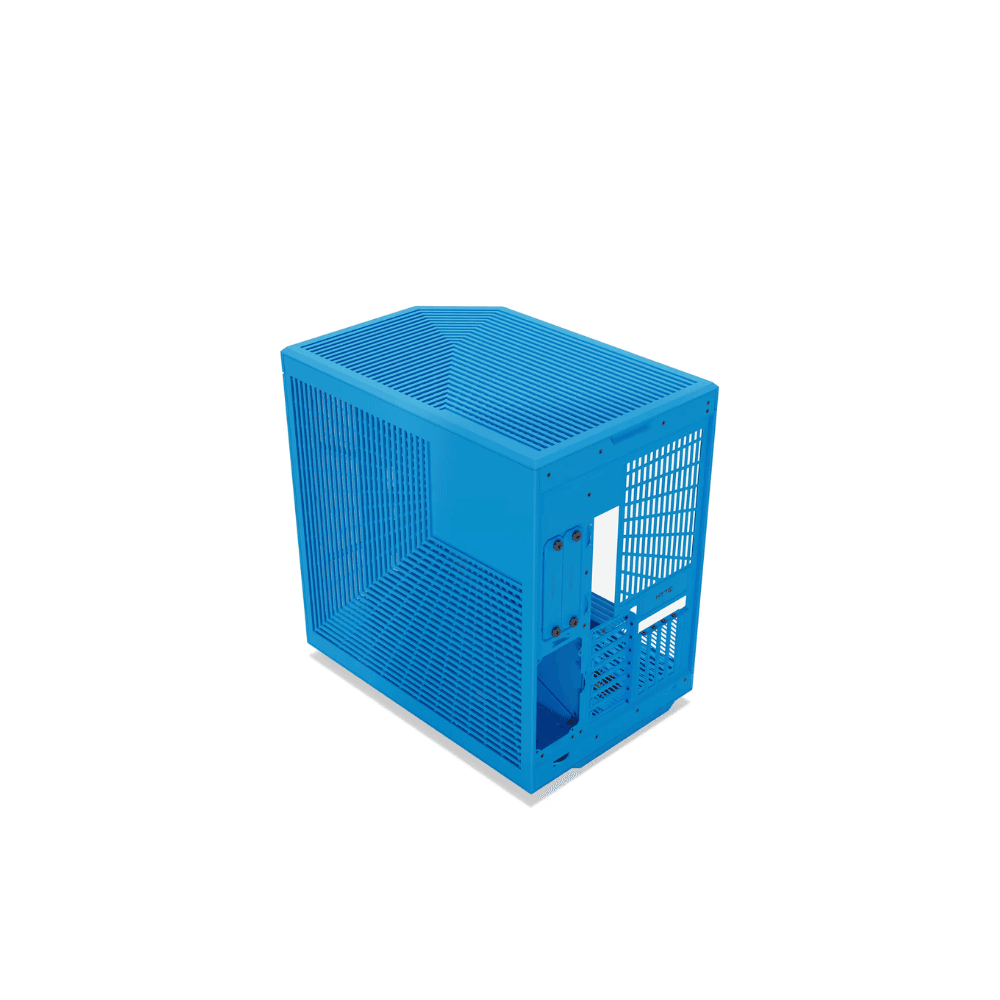

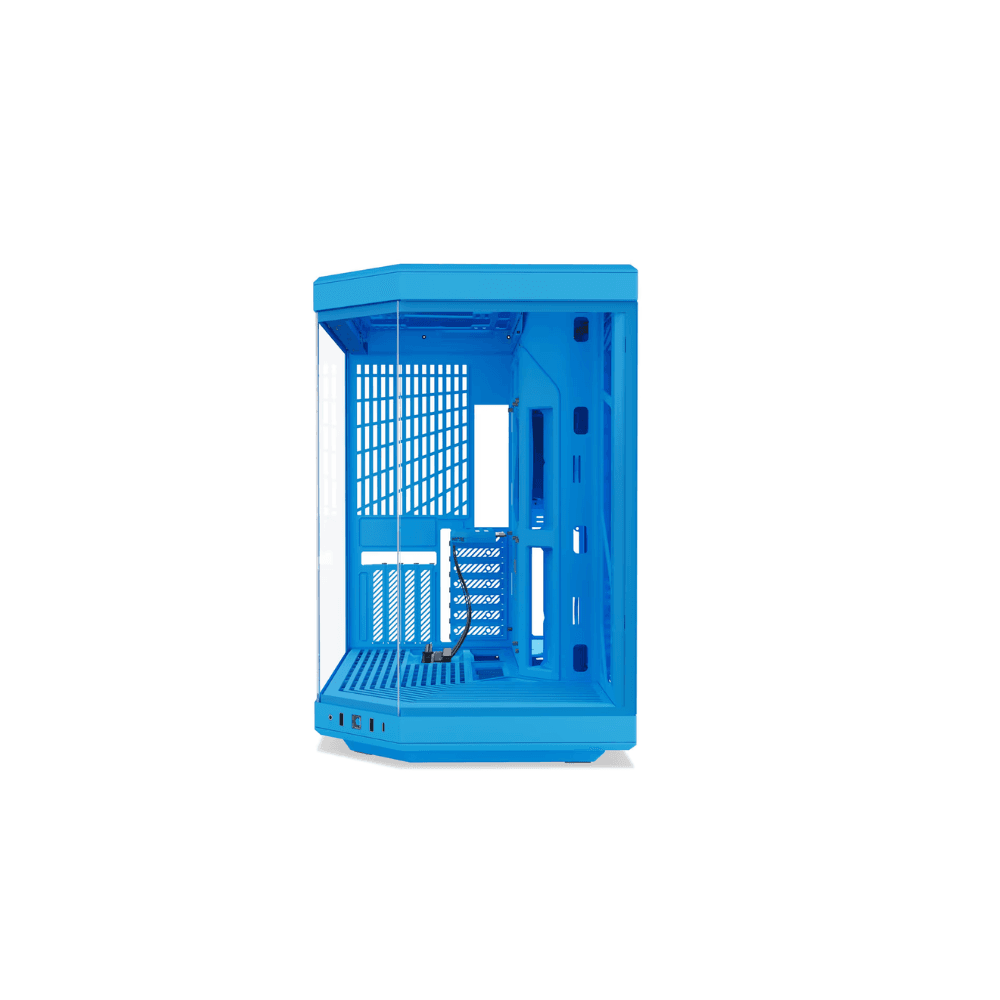

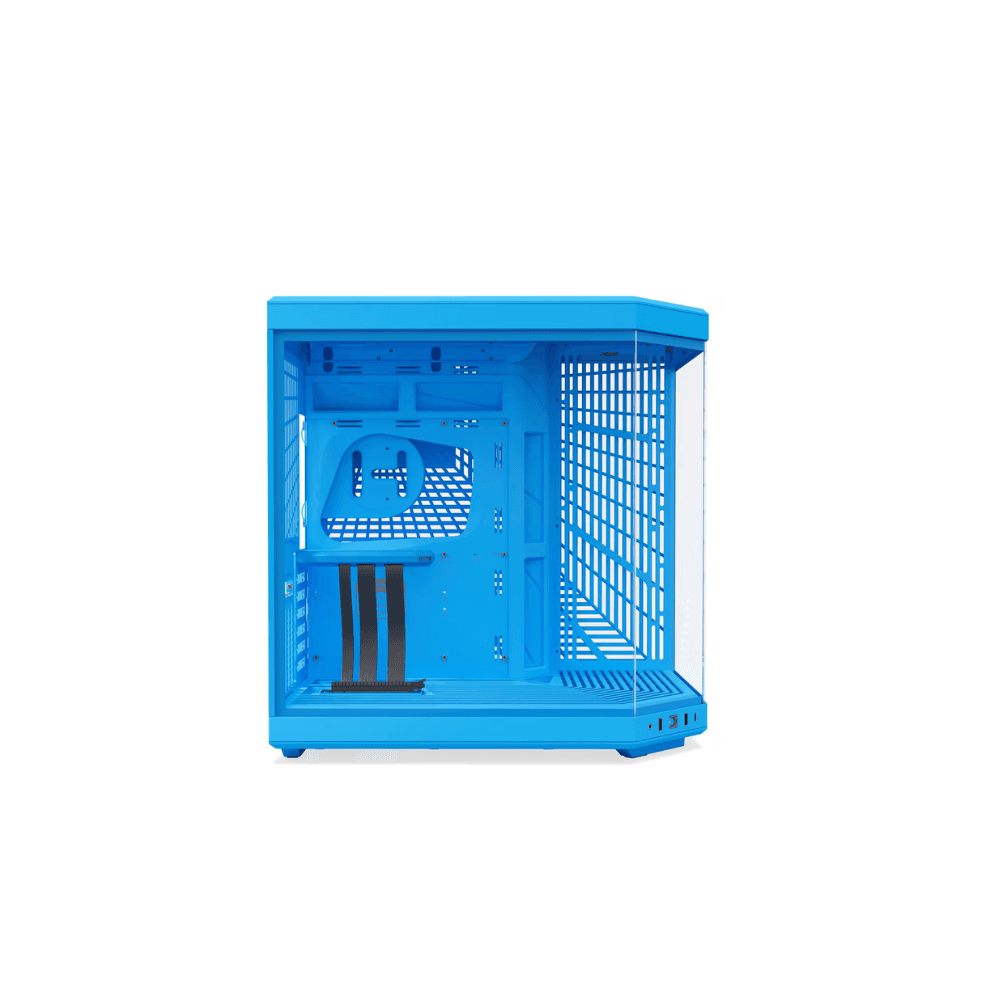

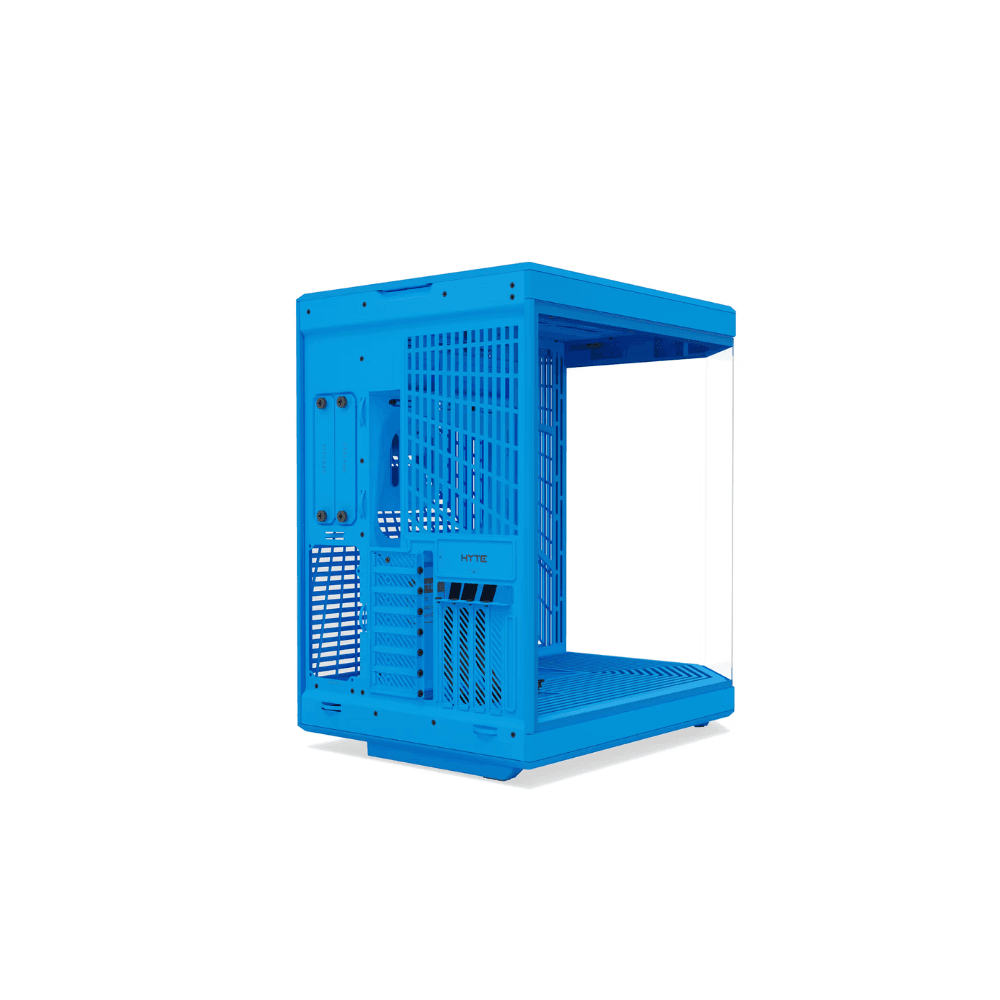

HYTE Y70 ATX MID TOWER CASE – BLUEBERRY

Product Type: Dual-Chamber ATX Mid-Tower PC Case
Series: HYTE Y70
Model: Y70
Color: Blueberry Milk

General

Case Material: Steel, ABS Plastic & Tempered Glass

Side Panels: 3-Piece Panoramic Tempered Glass

Case Type: Dual-Chamber ATX Mid-Tower

Volume: 70.7 Liters

Motherboard Support:

• Mini-ITX
• Micro-ATX
• ATX
• E-ATX (Up to 10.6″) (HYTE)

Storage Support

Drive Bays:

• 2 × 3.5″ HDD
• 4 × 2.5″ SSD (HYTE)

Expansion

Expansion Slots:

• 7 × Half-Height
• 4 × Full-Height (Vertical GPU)

Included Riser Cable:

• PCIe 4.0 x16 Vertical GPU Riser Cable Included (HYTE)

Front I/O

USB Ports:

• 1 × USB 3.2 Gen 2 Type-C
• 2 × USB 3.2 Gen 1 Type-A

Audio:

• 1 × 3.5mm Headset Combo Jack (HYTE)

Cooling Support

Top:

• 3 × 120mm Fans
• 2 × 140mm Fans

Side:

• 3 × 120mm Fans
• 2 × 140mm Fans

Bottom:

• 3 × 120mm Fans
• 2 × 140mm Fans (Up to 32mm Thick)

Rear:

• 1 × 120mm Fan
• 1 × 140mm Fan (HYTE)

Pre-Installed Fans

Included Fans: None

Radiator Support

Top:

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm (Up to 68mm Thick)

Side:

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm (Up to 125mm Thick)

Rear:

• 120mm
• 140mm (HYTE)

Clearance

Maximum CPU Cooler Height: 180mm

Maximum Graphics Card Length: 422mm

Maximum Graphics Card Thickness: 105mm (Native 4-Slot Vertical GPU Support)

Maximum Power Supply Length: 235mm (HYTE)

Cable Management

Design: Dual-Chamber Layout

Features:

• Integrated Cable Routing Channels
• Reusable Velcro Straps
• L-Shaped Rubber Cable Grommet (HYTE)

Dust Protection

Dust Filters:

• Top
• Side
• Bottom (HYTE)

Dimensions & Warranty

Dimensions (H × W × D): 470 × 320 × 470mm

Volume: 70.7L

Warranty: 4 Years (HYTE)
