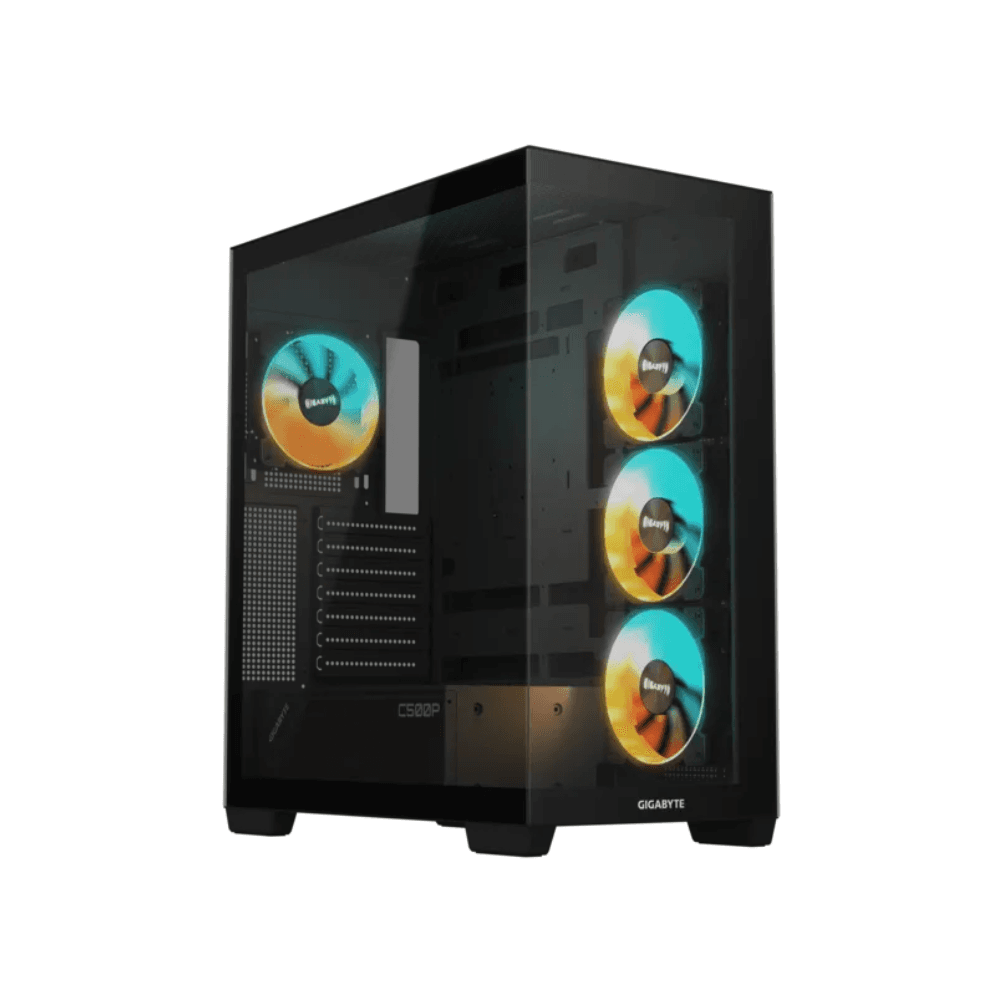

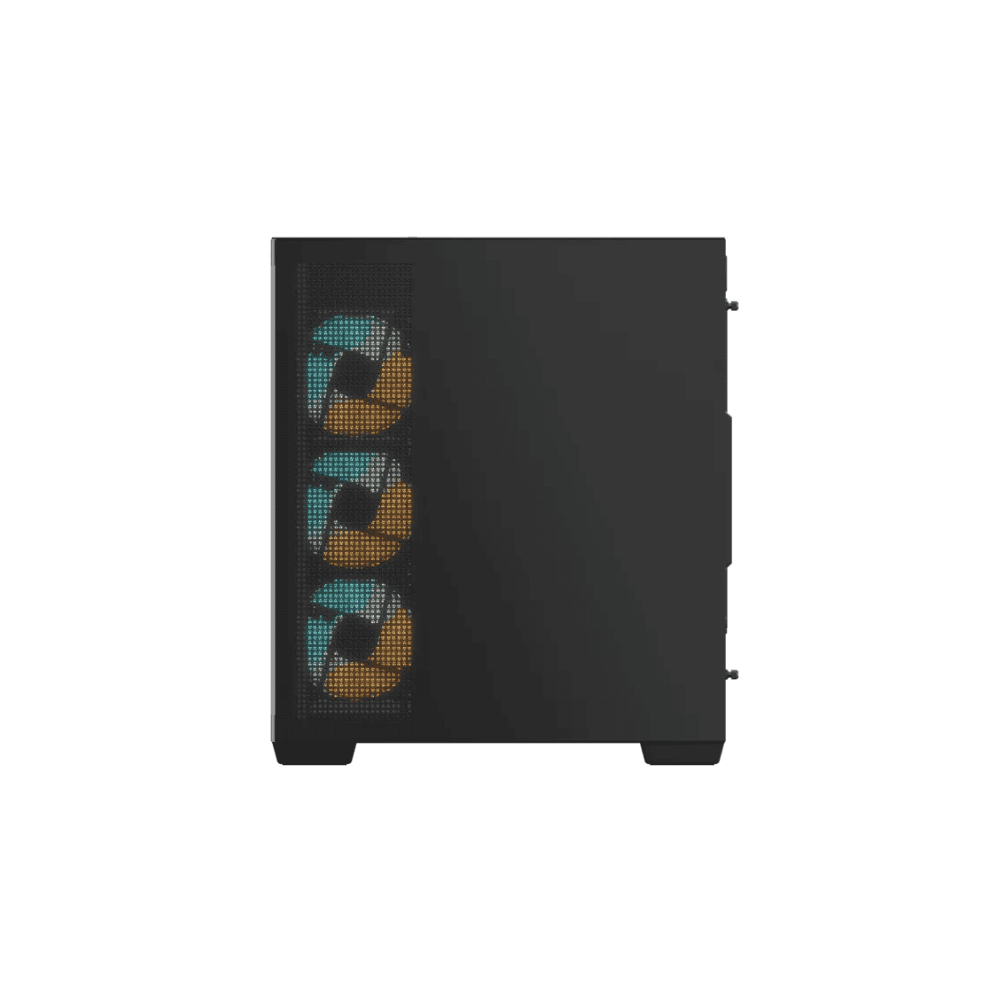

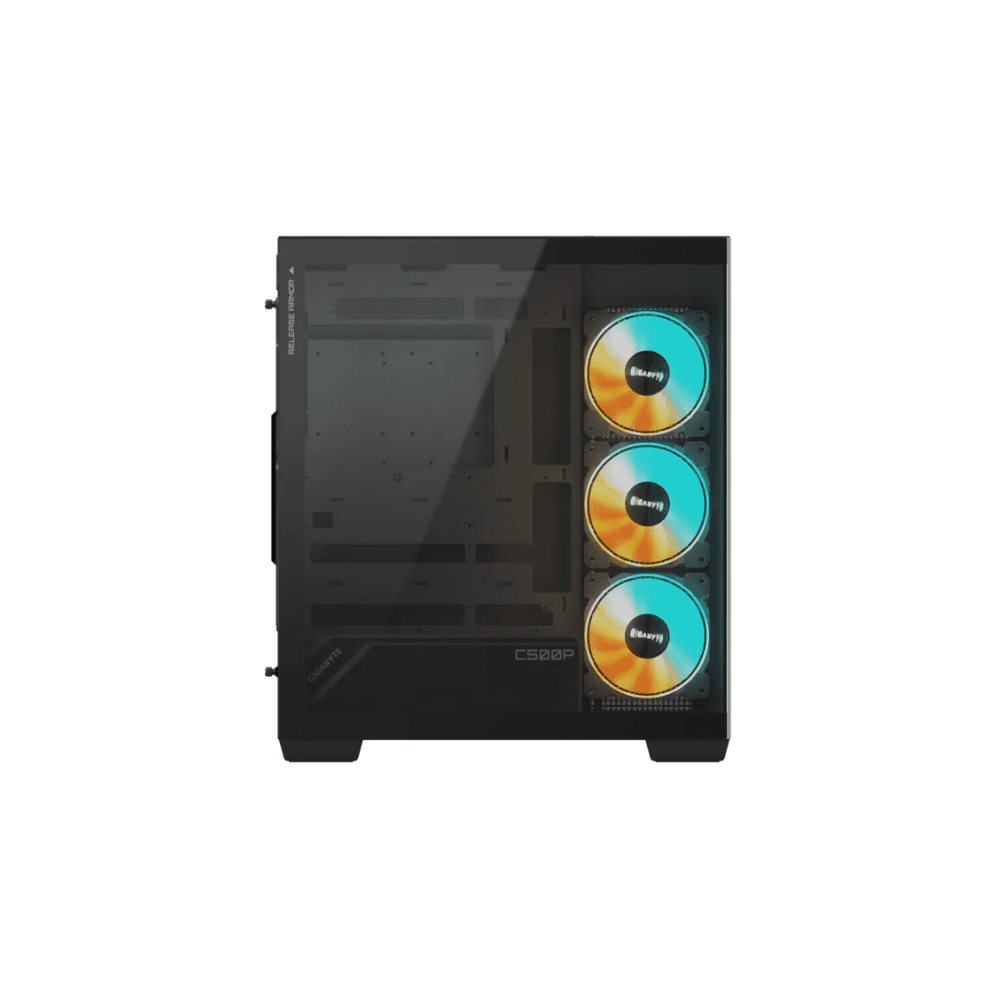

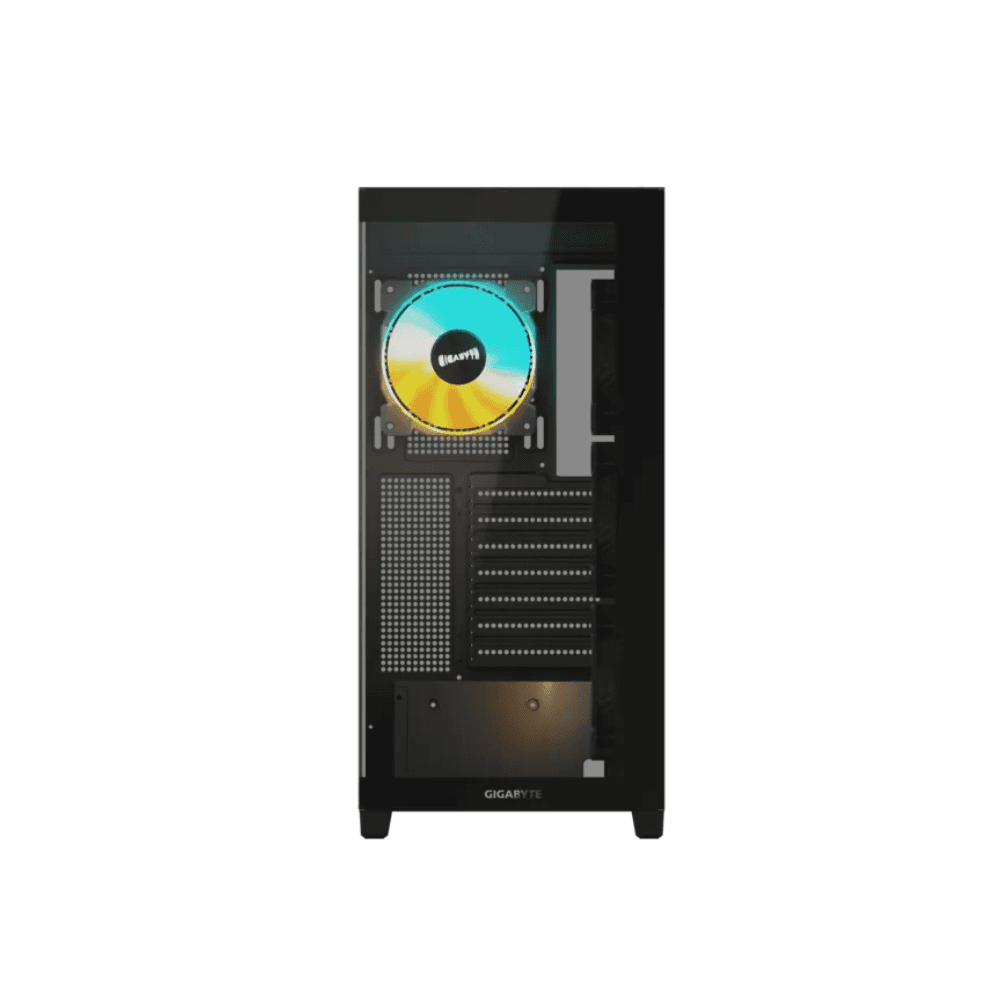

CASE GIGABYTE C500PI PANORAMIC STEALTH

Description

Product Type: Mid-Tower PC Case
Series: GIGABYTE C500 PANORAMIC STEALTH ICE
Model: GB-C500PI ST
Color: Black

General

Case Material: Steel, Plastic & Tempered Glass
Case Type: Mid-Tower

Motherboard Support:

• Mini-ITX
• Micro-ATX
• ATX
• Back-Connect Motherboard Compatible (GIGABYTE STEALTH Series) (GIGABYTE)

Storage Support

Drive Bays:

• 2 × 3.5″/2.5″ Combo Bays
• 1 × Dedicated 2.5″ SSD Bay (Supports up to 3 × 2.5″ drives) (GIGABYTE)

Expansion

Expansion Slots: 7

Vertical GPU Support: Yes (5-Slot Clearance) (GIGABYTE)

Front I/O

USB Ports:

• 1 × USB 3.2 Gen 2 Type-C
• 2 × USB 3.0 Type-A

Audio:

• HD Audio In / Out

Controls:

• Reset Button

Cooling Support

Top:

• 3 × 120mm Fans
• 2 × 140mm Fans

Bottom:

• 3 × 120mm Fans

Side:

• 3 × 120mm Fans

Rear:

• 1 × 120mm Fan
• 1 × 140mm Fan

Pre-Installed Fans

Side:

• 3 × 120mm ARGB Reverse Blade Fans

Rear:

• 1 × 120mm ARGB Fan

Radiator Support

Top:

• Up to 360mm

Side:

• Up to 360mm

Rear:

• Up to 140mm

RGB Lighting

Lighting: Addressable RGB (ARGB)

RGB Hub: Built-in ARGB Connector Hub (5 × 5V 3-Pin Connectors)

Software Support: GIGABYTE RGB Fusion Compatible (GIGABYTE)

Clearance

Maximum CPU Cooler Height: 176mm

Maximum Graphics Card Length: 410mm

Maximum Power Supply Length: 200mm

Dust Protection

Removable Dust Filters:

• Top
• Side
• Bottom

Dimensions & Weight

Dimensions (H × W × D): 501 × 235 × 430mm

Net Weight: 8.1kg

Gross Weight: 9.97kg (GIGABYTE)

Package Contents

• User Manual
• Accessories Kit
