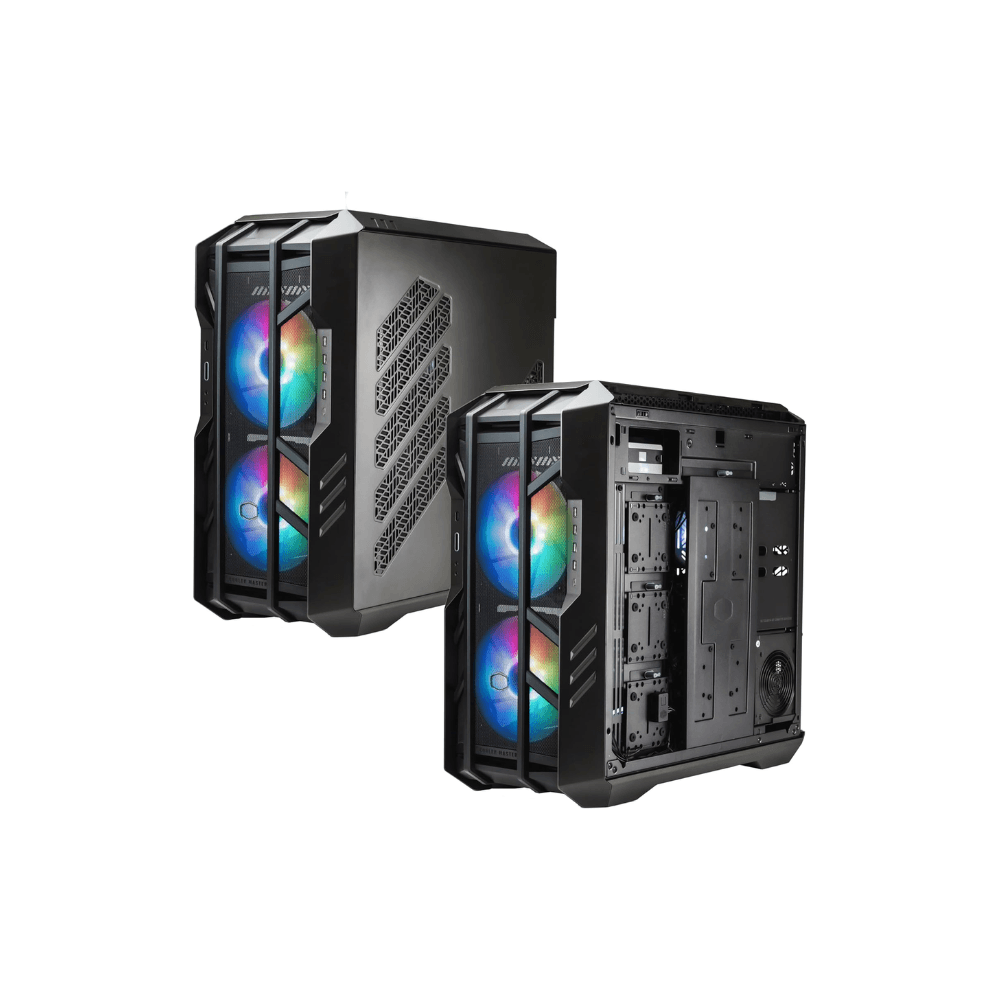

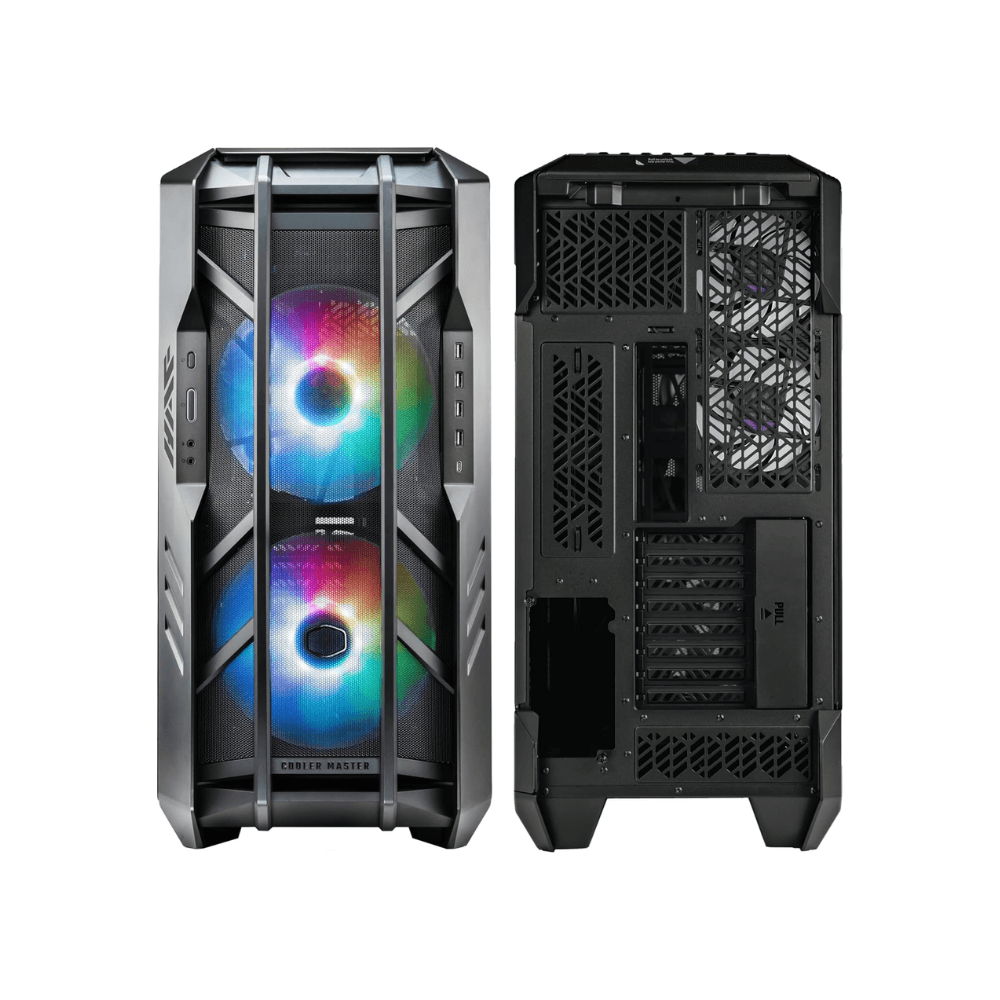

COOLERMASTER HAF 700 BLACK

Description

Product Type: Full Tower PC Case
Series: Cooler Master HAF Series
Model: HAF 700
Model Number: H700-IGNN-S00 / H700-WGNN-S00
Color: Titanium Grey / Black

General

Exterior Material: Steel & Plastic
Left Side Panel: Tempered Glass
Motherboard Support:

• Mini-ITX

• Micro-ATX

• ATX

• E-ATX

• SSI-CEB

• SSI-EEB

Storage Support

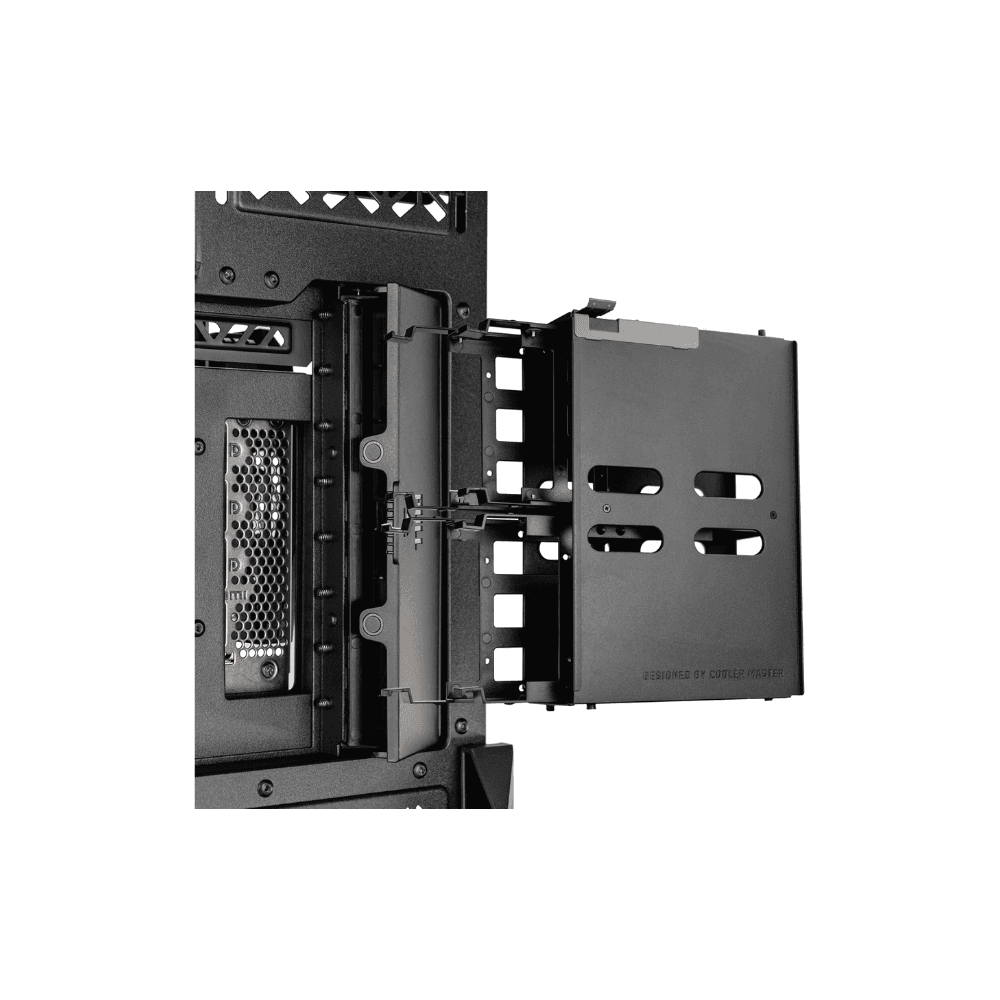

Drive Bays:

• 9 × 2.5″/3.5″ Combo Bays

Expansion

Expansion Slots: 8

Front I/O

USB Ports:

• 1 × USB 3.2 Gen 2 Type-C

• 4 × USB 3.2 Gen 1 Type-A

Audio:

• 1 × 3.5mm Headset Combo Jack

• 1 × 3.5mm Microphone Jack

Cooling Support

Top:

• 6 × 120mm Fans (or 3 × 140mm / 2 × 200mm)

Front:

• 2 × 200mm Fans

Rear:

• 2 × 120mm Fans

Bottom:

• 3 × 120mm / 140mm Fans

Side:

• 4 × 120mm Fans

• 3 × 140mm Fans

Pre-Installed Fans

Front:

• 2 × 200mm SickleFlow ARGB PWM Fans

Rear:

• 2 × 120mm SickleFlow ARGB PWM Fans

Bottom:

• 1 × 120mm SickleFlow ARGB PWM Fan

Radiator Support

Top:

• Up to Dual 360mm Radiators

• Up to 420mm Radiator

Rear:

• Up to 240mm Radiator

Bottom:

• Up to 420mm / 360mm Radiator

Side:

• Up to 480mm / 420mm / 360mm Radiator

Clearance

Maximum CPU Cooler Height: 166mm
Maximum Graphics Card Length: 490mm
Maximum Power Supply Length: 200mm

Cable Management

Cable Routing Space: 90–101mm Behind the Motherboard Tray

Dust Protection

Removable Dust Filters:

• Bottom

• Right Side

Power Supply Support

PSU Type: ATX (Bottom Mounted)

Included Accessories

• Rotatable Radiator Bracket

• ARGB Gen2 LED Controller A1

• ARGB / PWM Fan Hub

Dimensions

Body Size (L × W × H): 556 × 279 × 540mm

Overall Dimensions (Including Protrusions): 666 × 291 × 626mm
